E1 Series Servo Drive Thunder Software Operation Manual Appendix
HIWIN MIKROSYSTEM CORP. 11-9
MD12UE01-2012

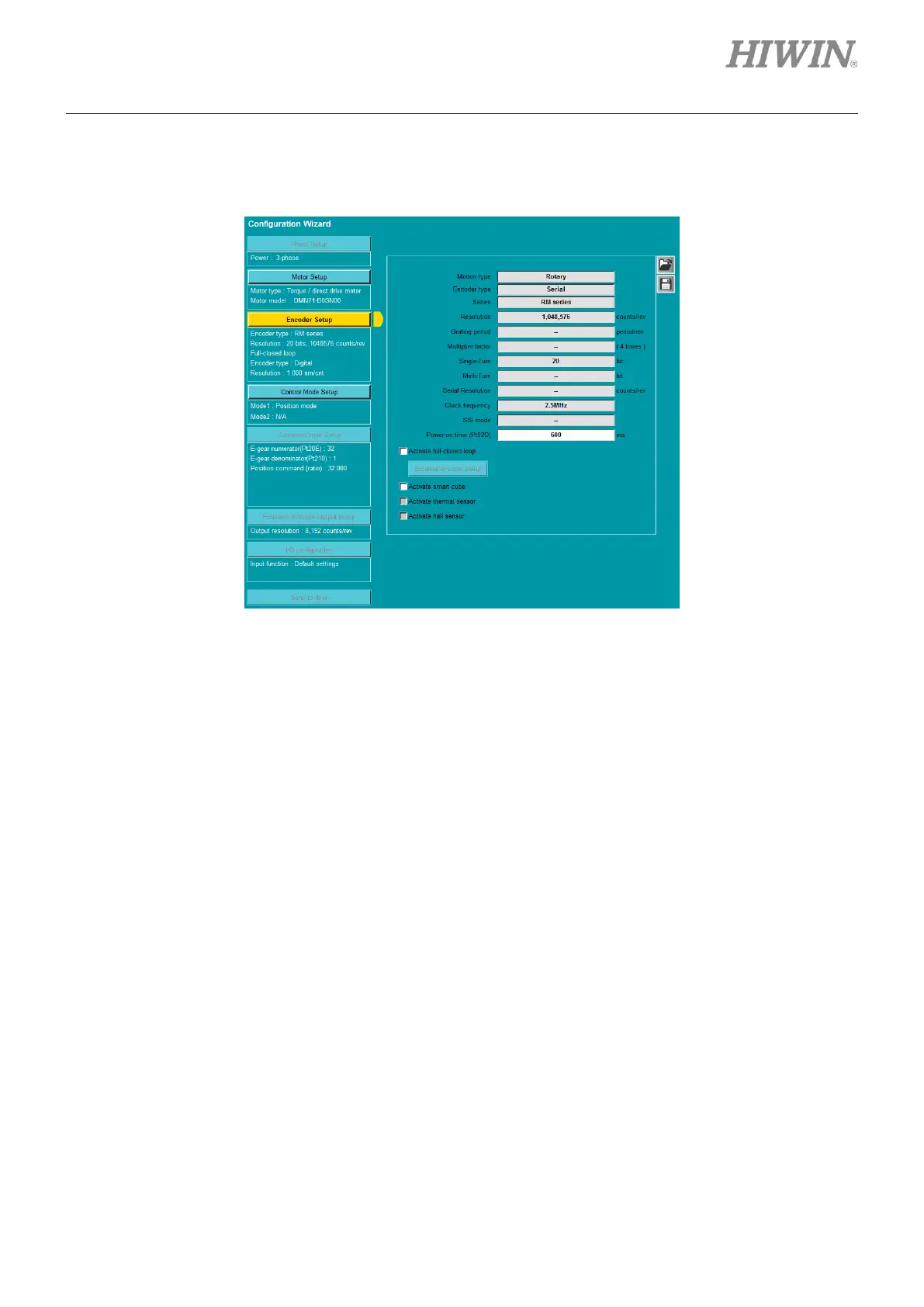

8. Enter Encoder Setup page to view encoder parameters automatically filled in. Refer to section 4.3.4
for the detailed descriptions.
Figure 11.1.2.8
9. Refer to section 4.3.4 to 4.3.9 to complete servo drive configuration.
