3. After servo drive is power cycled, “Pre-Configuration” window will show up. Select Linear for motor
type.

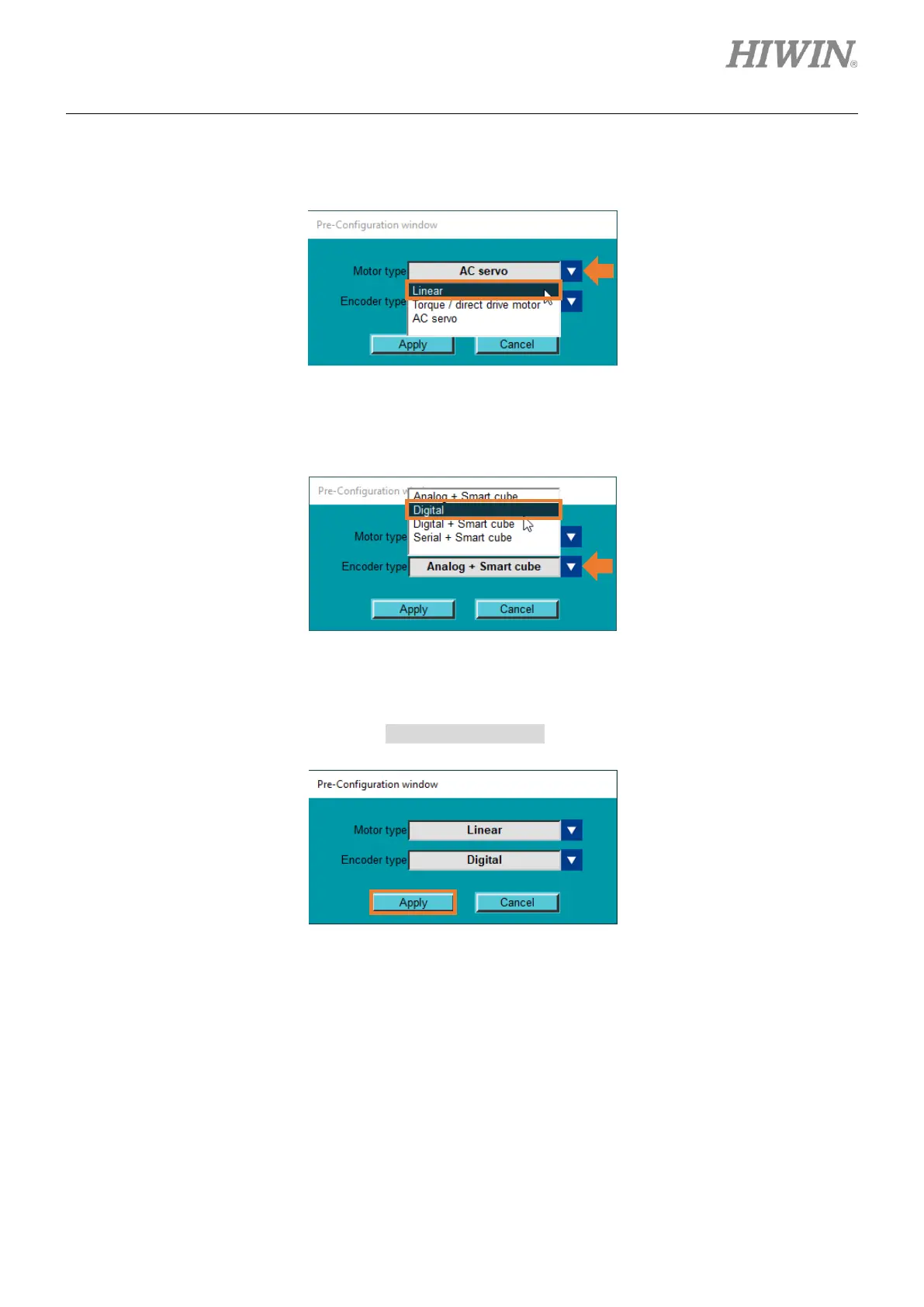

Figure 11.1.3.3
4. Select encoder format. Here takes Digital as an example.
Figure 11.1.3.4
5. After the selection, click Apply to complete pre-configuration function setting. At this time, servo drive
will be power cycled. After that, go to Configuration Wizard to continue setting servo drive.
Figure 11.1.3.5
6. Click “Open Configuration Wizard” icon in the toolbar to open “Configuration Wizard” window.
