E1 Series Servo Drive Thunder Software Operation Manual Start Thunder
HIWIN MIKROSYSTEM CORP. 3-5
MD12UE01-2012

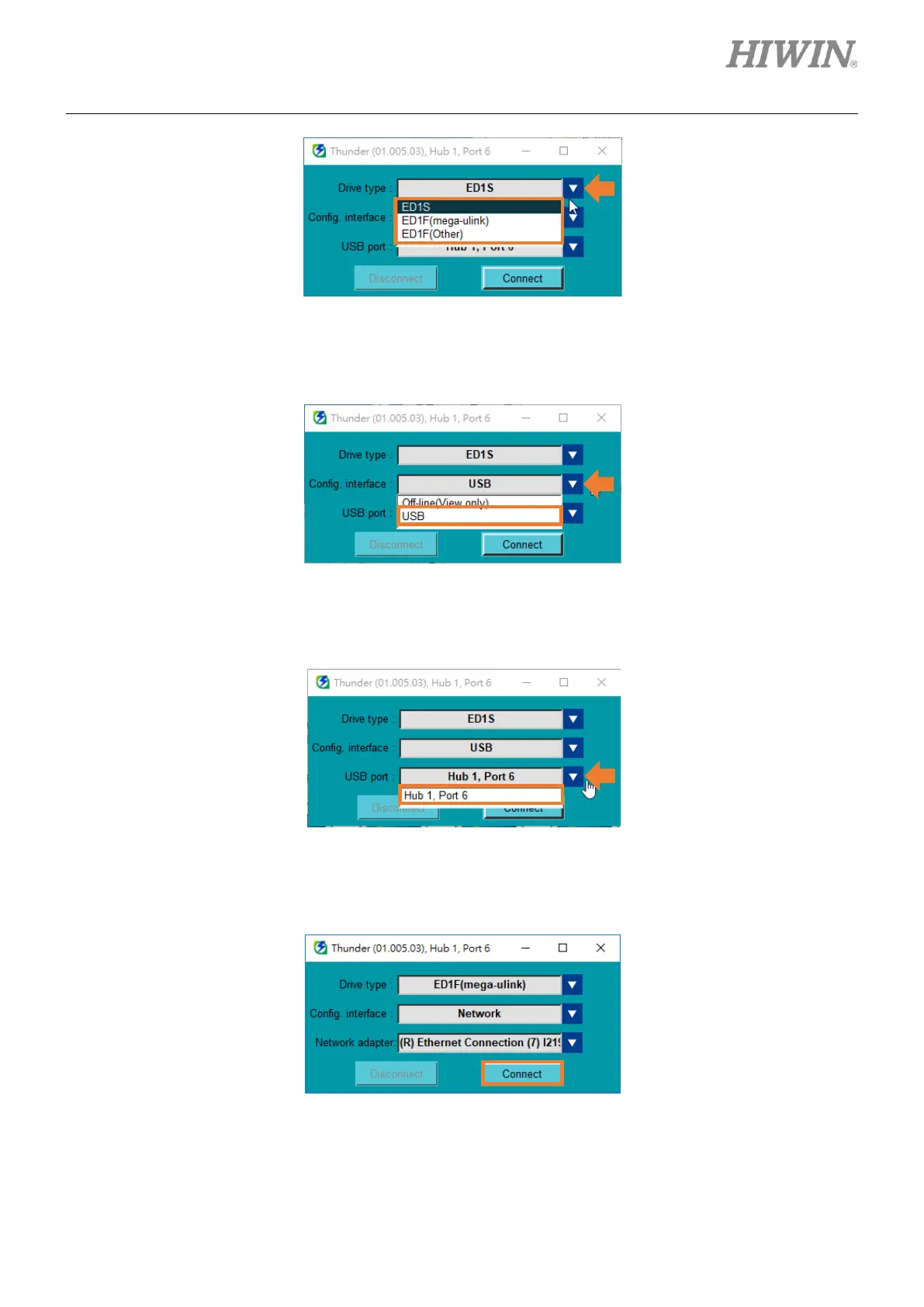

Figure 3.2.2.1
2. Select USB in Config. interface.
Figure 3.2.2.2
3. Select the USB port actually connected to the servo drive.
Figure 3.2.2.3
4. Click Connect.
Figure 3.2.2.4
