117

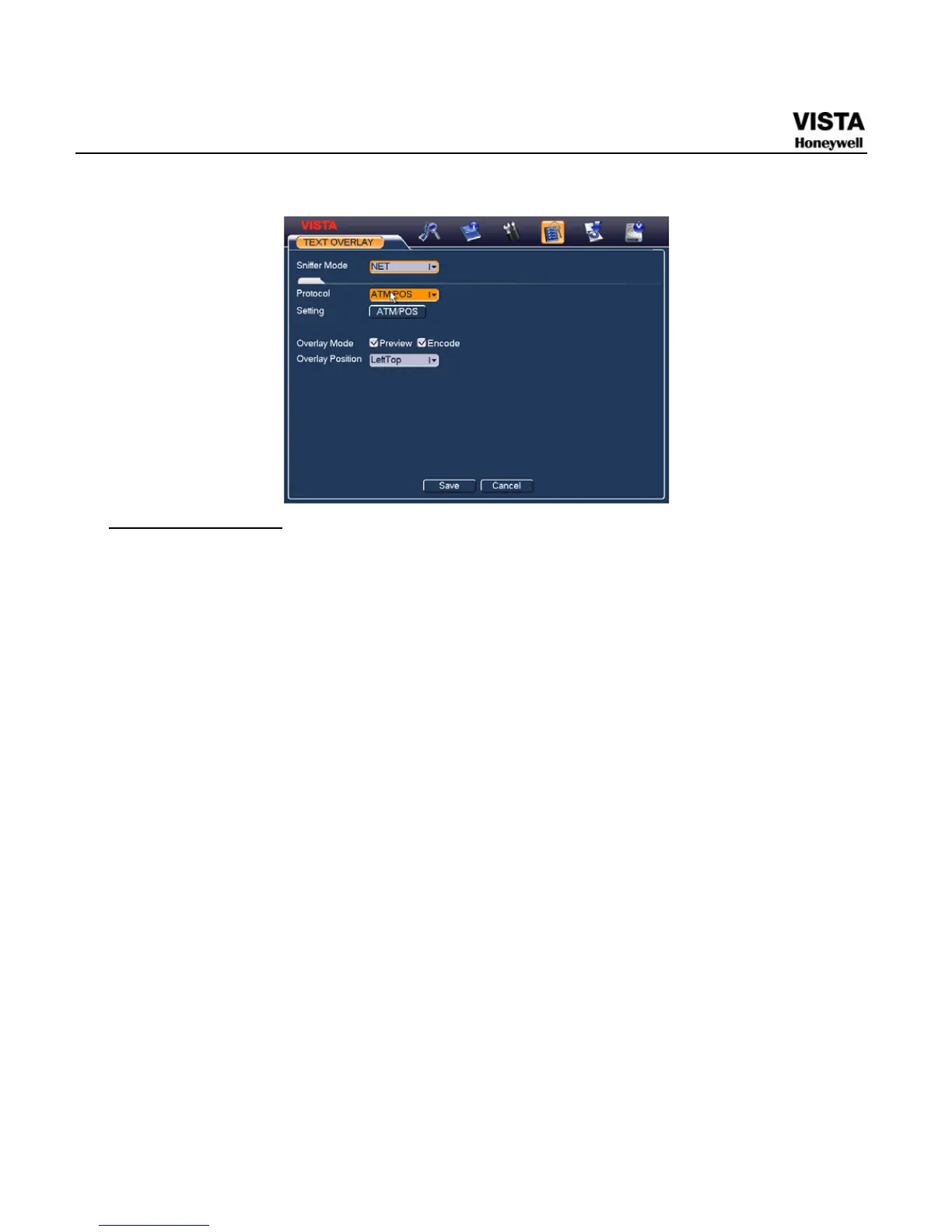

Figure 5-46 Text Overlay(Network Type)
Without the protocol
For the ATM/POS without the protocol, the interface is shown as in
796HFigure 5-47.
Source IP refers to host IP address that sends out information (usually it
is the device host.)
Destination IP refers to other systems that receive information.
Usually you do not need to set source port and target port.
There are total four groups IP. The record channel applies to one group
(optional) only.
Six frame ID groups verification can guarantee information validity and
legal.
