59
You can view backup device name and its total space and free space.
The device includes USB burner, flash disk, SD card, and portable
HDD.

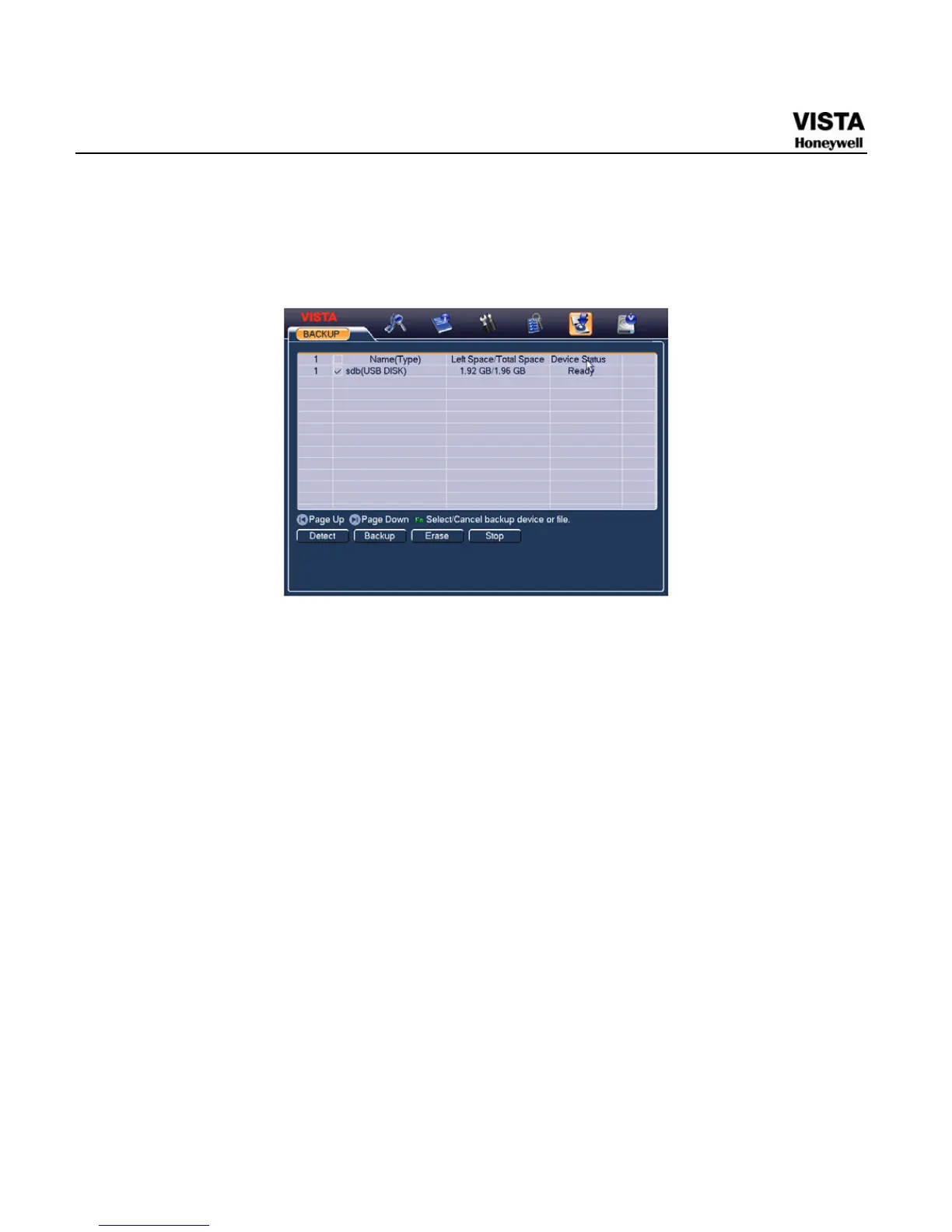

Figure 4-31 Device Detection Menu of Backup
Backup
Select backup device and then set channel, file start time and end
time.
Click add button, system begins search. All matched files are listed
below. System automatically calculates the capacity needed and
remained. See
713HFigure 4-32.
system only backup files with a √ before channel name. You can
use Fn or cancel button to delete √ after file serial number.
Click backup button, you can backup selected files. There is a
process bar for you reference.
When the system completes backup, you can see a dialogue box
prompting successful backup.
