Honeywell CADVR-04D - Figure 2- 2 the Rear Panel of CADVR-04 D

8

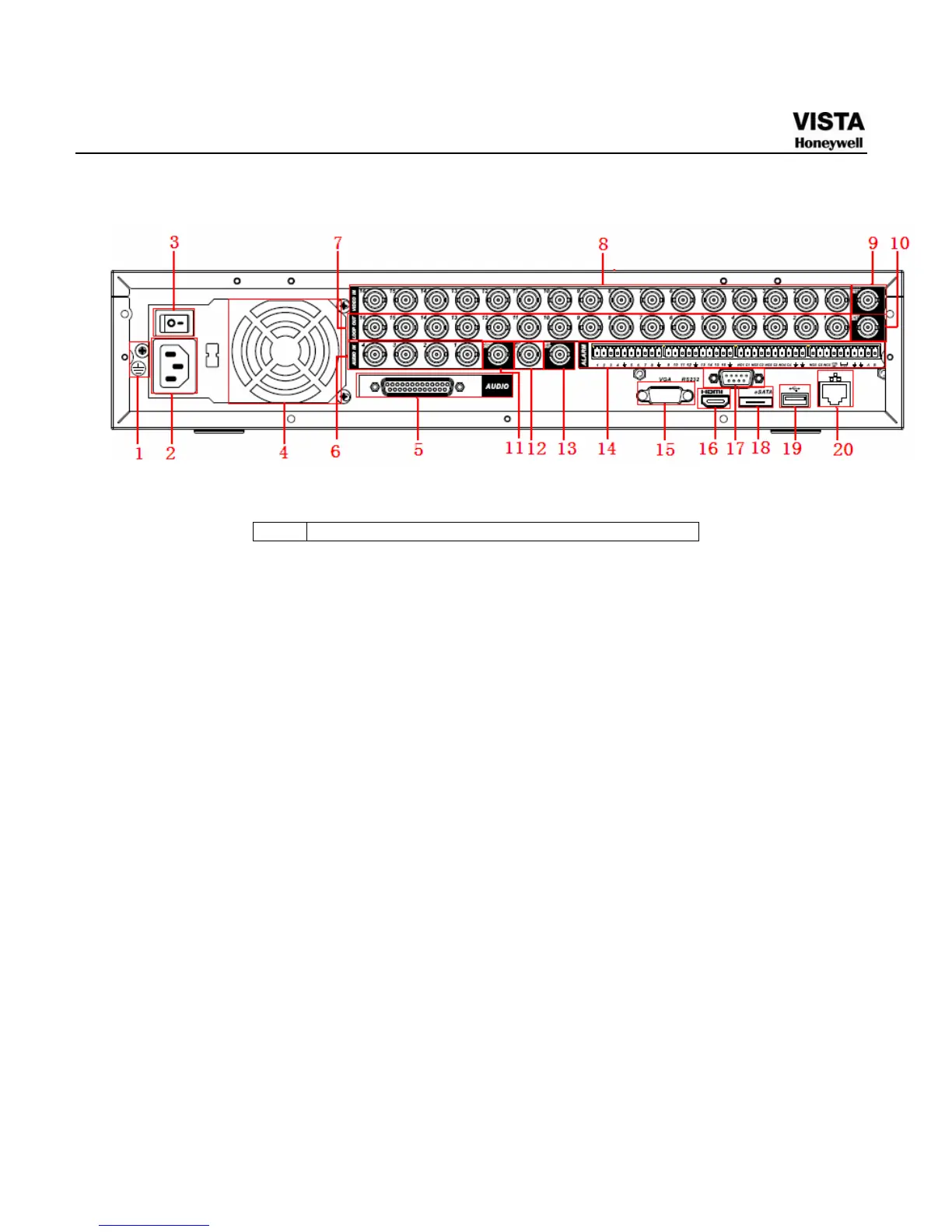

Figure 2- 2 The Rear Panel of CADVR-04D
Please refer to the following sheet for detailed information.
No. Description
1 GND port
2 Power input port
3 Power button
4 Fan
5 DB25 port ( 5th to 16th-channel audio input port)
6 1st to 4th-channel audio input
7 Loop video output
8 Video input
9 Video CVBS output
10 Matrix video output
11 Audio output
12 Bidirectional talk input port
13 Bidirectional talk output port
14 Alarm input/Alarm output/RS485 port HDMI port
15 Video VGA output
16 HDMI port
17 Video CVBS output RS232 port
18 Video matrix output eSATA port
19 USB port
20 Network port
When connect the Ethernet port, please use crossover cable to connect
the PC and use the straight cable to connect to the switcher or router.
