63
After completing all the setting please click save button.
In one window display mode, right click mouse (click “Fn” Button in
the front panel or click “Fn” key in the remote control). The interface
is shown as in
716HFigure 4-35.

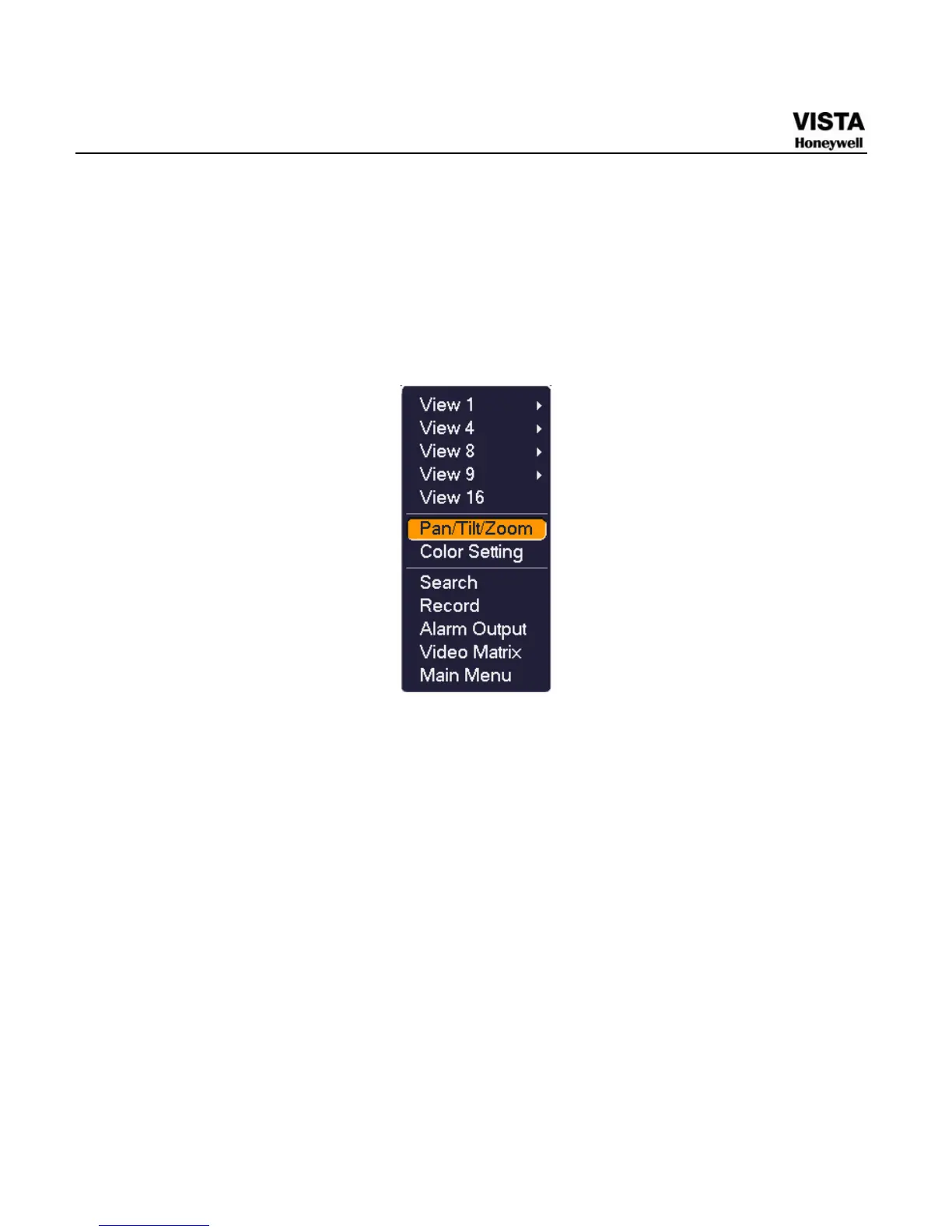

Figure 4-35 Context Menu
Click Pan/Tilt/Zoom, the interface is shown as below. See 717HFigure 4-36.
Here you can set the following items:
z Step: value ranges fro 1 to 8.
z Zoom
z Focus
z Iris
Please click icon and to adjust zoom, focus and iris.
