15
HDD Installation
This series DVR max supports 8 SATA HDDs. Please use HDD of
7200rpm or higher. It has no requirement for HDD capacity.
You can refer to the appendix for recommended HDD brand.

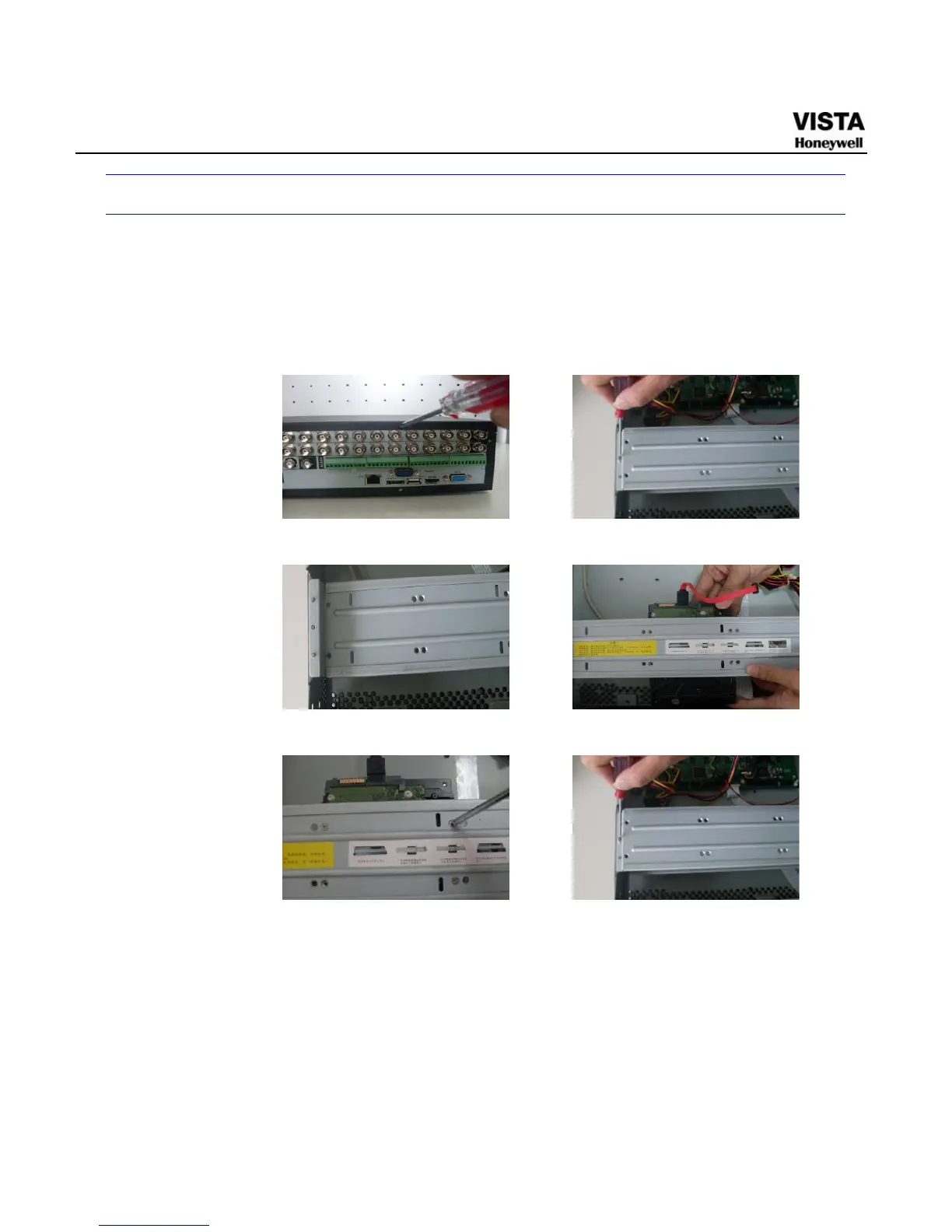

Please follow the instructions below to install hard disk.
1. Loosen the screws and remove
the the upper cover.
2. Remove the HDD upper
bracket
3. Now you can see the bottom
bracket
4. Line up the HDD to the four
holes of the HDD bracket.
5. Use four screws to fix HDD. 6. Install the upper bracket and
then Use screws to fix HDD in
the bracket.
