Honeywell CADVR-04D - Connection Sample; Remote Control; Figure 2- 3 Device Connection

9
Connection Sample
Please refer to669HFigure 2- 3 for connection sample.

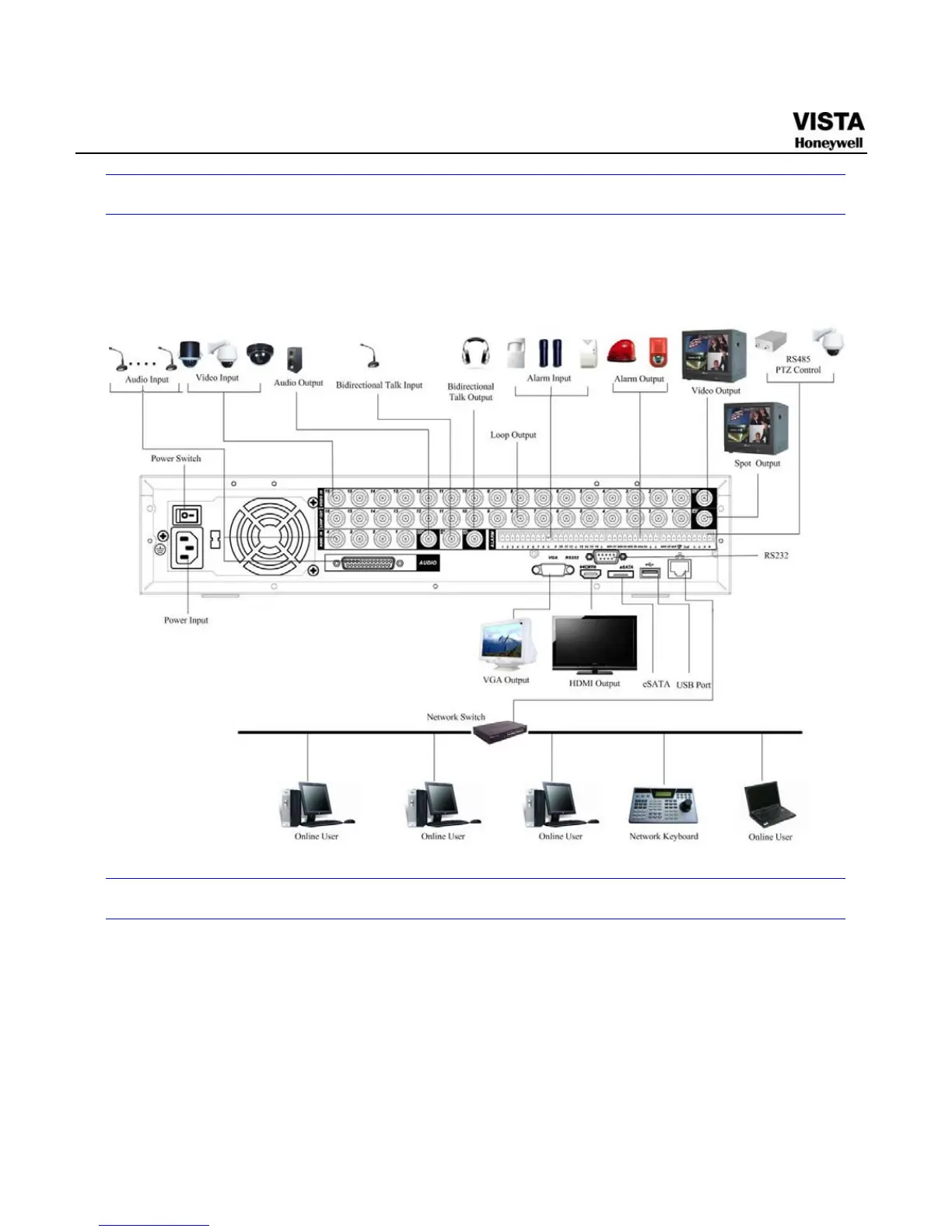

Figure 2- 3 Device Connection
Remote Control
The remote control interface is shown as in 670HFigure 2- 4
Please note remote control is not our standard accessory and it is not
included in the accessory bag.
