Honeywell MX7 Tecton - How to Remap a Single Key; Keymap Tab; Remap a Key to a Unicode Value

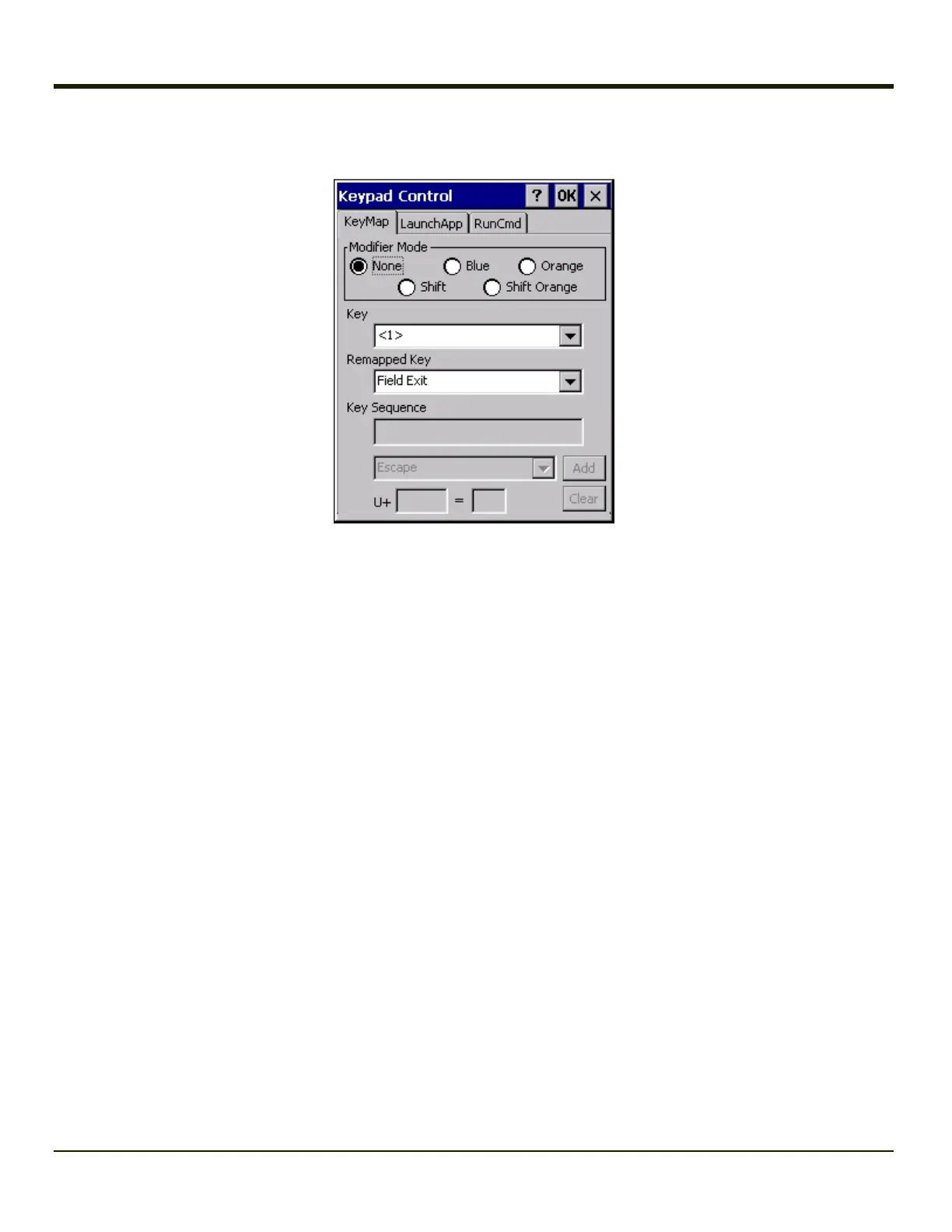

KeyMap Tab
Assign settings by clicking radio buttons and selecting keys from the drop down boxes. Tap the OK button when finished. The
changes take effect immediately.
How to Remap a Single Key
1. Select the modifier key from the Modifier Mode options.
2. Select the key to be remapped from the Key pulldown list.
3. Select the value from the remapped key from the Remapped Key pulldown list.
4. Click OK to save the result and close the Keypad Control.
Remap a Key to a Unicode Value
1. Select the modifier key from the Modifier Mode options.
2. Select the key to be remapped from the Key pulldown list.
3. Select Unicode from the Remapped Key pulldown list.
4. There are two Unicode text boxes located on the lower part of this tab. Enter the Unicode value in the left textbox and
the Unicode character is displayed in the right textbox.
5. Click OK to save the result and close the control panel.
4-143
