Honeywell MX7 Tecton Reference Manual

PEAP/GTC

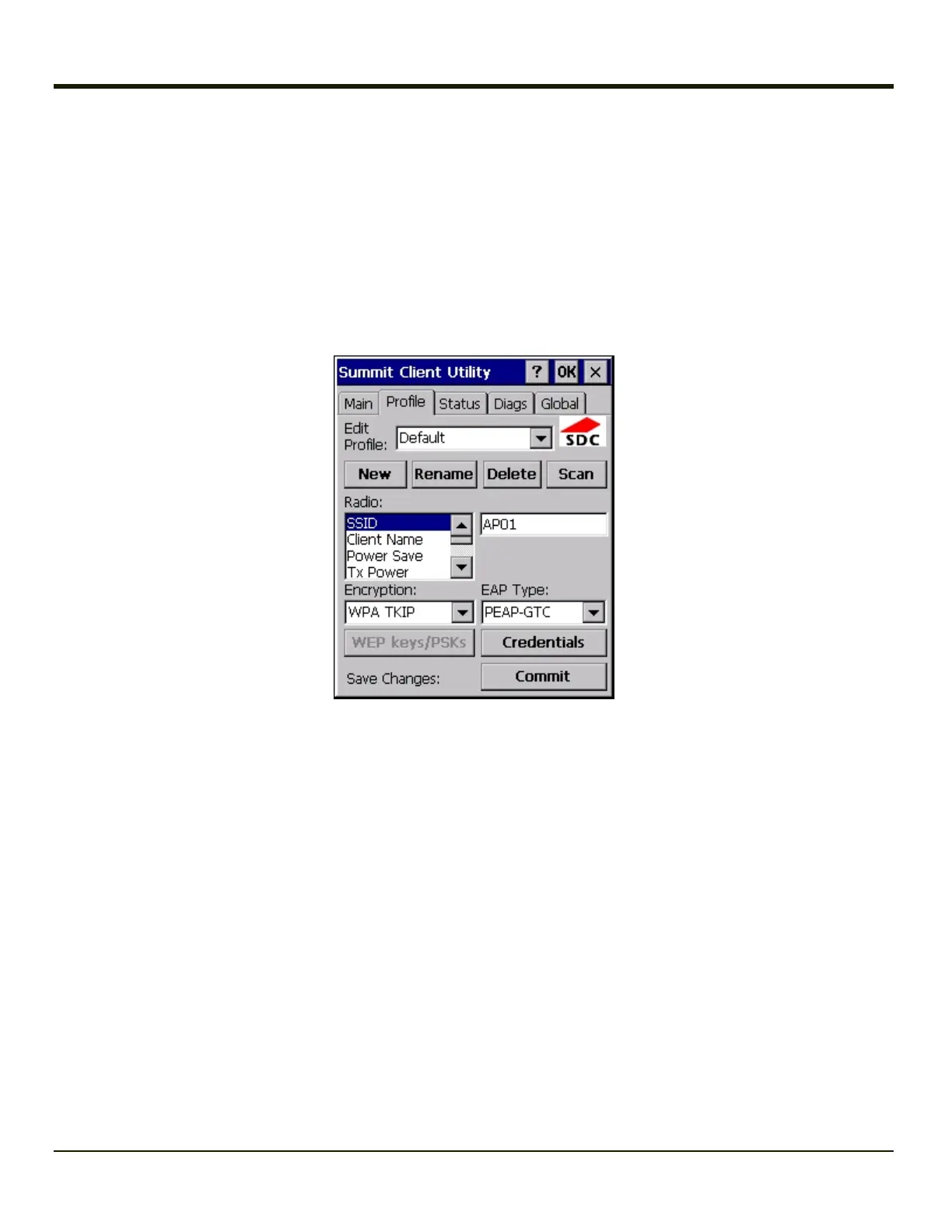

To use PEAP/GTC, make sure the following profile options are used.
l Enter the SSID of the Access Point assigned to this profile
l Set EAP Type to PEAP-GTC
l Set Encryption to WPA TKIP
l Set Auth Type to Open
To use another encryption type, select WPA CCKM, WPA2 AES or WPA2 CCKM for encryption and complete other entries as
detailed in this section.
See Sign-On vs. Stored Credentials for information on entering credentials.
Click the Credentials button.
l No entries except the CA Certificate Filename are necessary for Sign-On Credentials as the user will be prompted for
the User Name and Password when connecting to the network.
8-30

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
