Honeywell MX7 Tecton Reference Manual

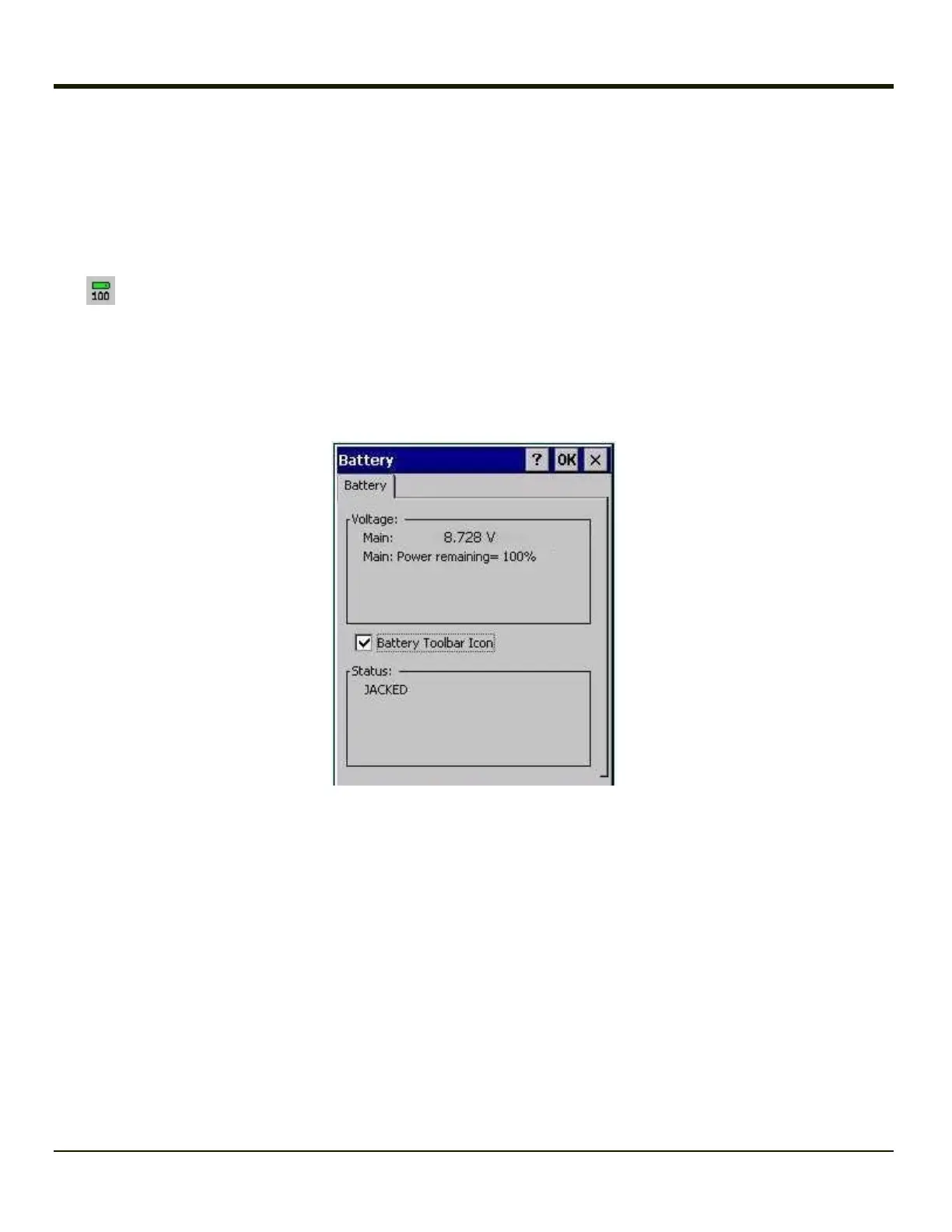

Battery
Start > Settings > Control Panel > Battery
This panel is used to view the status and percentage of power remaining in the MX7 Tecton main battery.
The battery gas gauge icon resides in the system tray and shows four levels of charge – 100%,
75%, 50%, 25%. At a point below 25%, the system status LED will turn red and the gas gauge icon
will turn red indicating the battery is low.
The battery gauge icon is enabled by default, but can be disabled on the MX7 Tecton Battery
control panel.
Jacked is shown in the Status box when the Main battery is receiving external power.
The main battery is charged/recharged when the MX7 Tecton is docked in a powered cradle or directly cabled to an external
power source.
The internal battery draws power from the Main battery to maintain a charge. The Super-cap battery voltage and percentage of
power fluctuate continuously.
When there is no Main battery in the unit, the internal battery begins to discharge as it maintains RAM and other vital settings.
After a Main battery is installed, the internal battery begins to draw power from the Main battery again and is fully recharged in
five minutes or less.
Note: Frequent connection to an external power source, if feasible, is recommended to maintain main battery charge status
as the Super-cap battery cannot be recharged by a dead or missing main battery.
4-56

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
