Honeywell MX7 Tecton Reference Manual

Preparation
l Contact Technical Assistance to get the OS Upgrade files from Honeywell.
l It is recommended that removing/installing the SD Flash card is performed on a clean, well-lit surface.
l Always perform MX7 Tecton updates when it has a fully charged main battery and a dependable external power source
connected to the MX7 Tecton and a fully charged internal battery.
Procedure

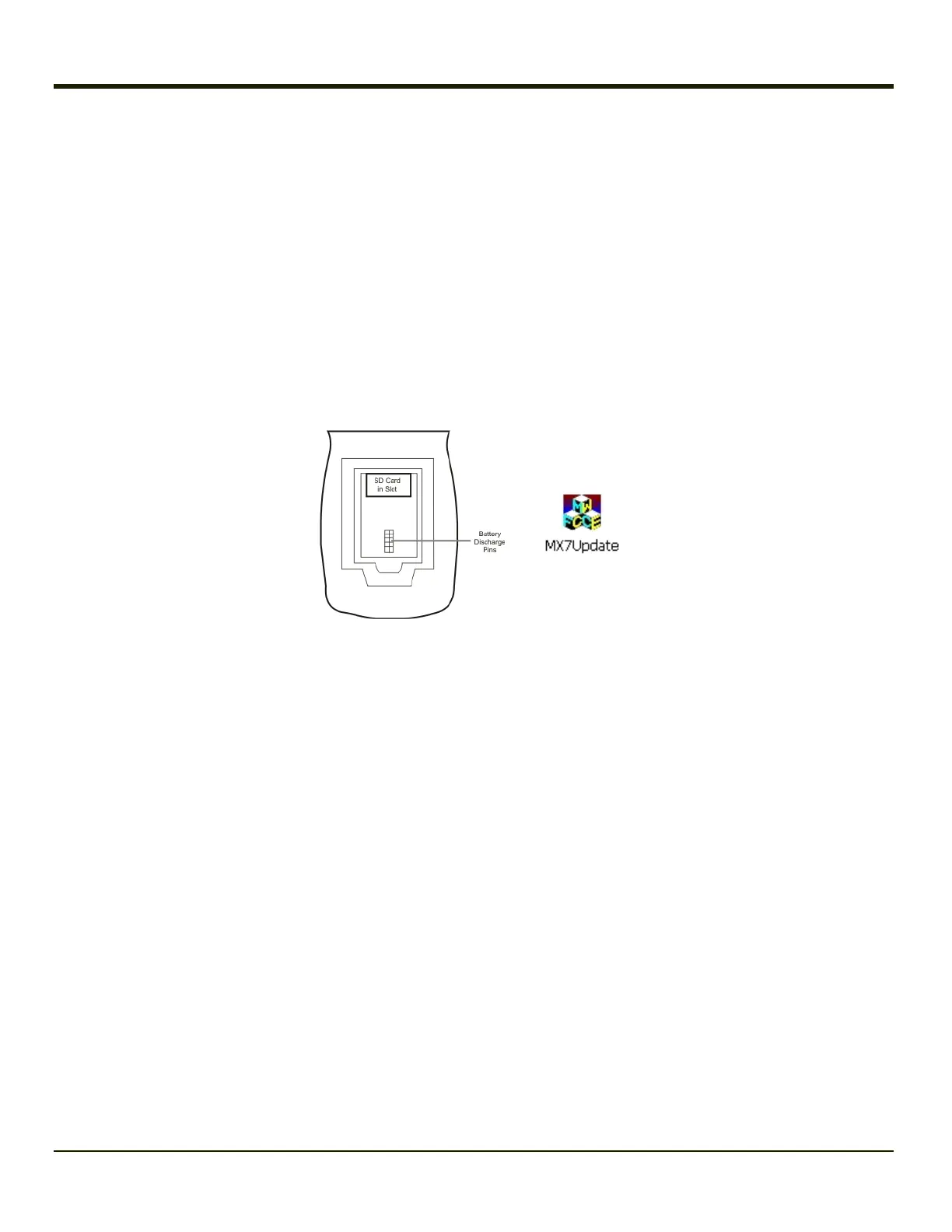

Place new image files and MX7Update on a SD card.
Place the MX7 Tecton in Suspend Mode and remove the main battery pack.
Lift the rubber barrier and slide the SD card out of the slot. Do not remove the rubber barrier. The MX7 Tecton may not have a
SD card in the slot because the OS is in flash.
1. Place the SD flash card with new image files on it into the SD slot. The label on the SD card should be facing up.
2. Launch MX7UPDATE.EXE in My Device > Storage Card.
3. Verify the desired checkboxes are checked and the unwanted checkboxes are not checked.
4. Important: If a failure occurs during the update, DO NOT RESTART (or coldboot). Follow the instructions on the screen
to Exit the update utility. Restart the update utility.
5. Tap Start to start the update. The checkbox is dimmed when the Update is processing. Do not touch the device until the
install/update is complete.
4-22

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
