Honeywell MX7 Tecton Reference Manual

MX7TOptions
Start > Settings > Control Panel > MX7T Options
Set options such as IP V6, time sync, touch screen enable and CapsLock. Also set Status Popup taskbar icon display options
for the Admin and User.
It may be necessary to warmboot the MX7 Tecton after making desired changes. A pop up window indicates if a warmboot is
required.
Note: Contact Technical Assistance if there is no icon corresponding to this item in the ControlPanel.

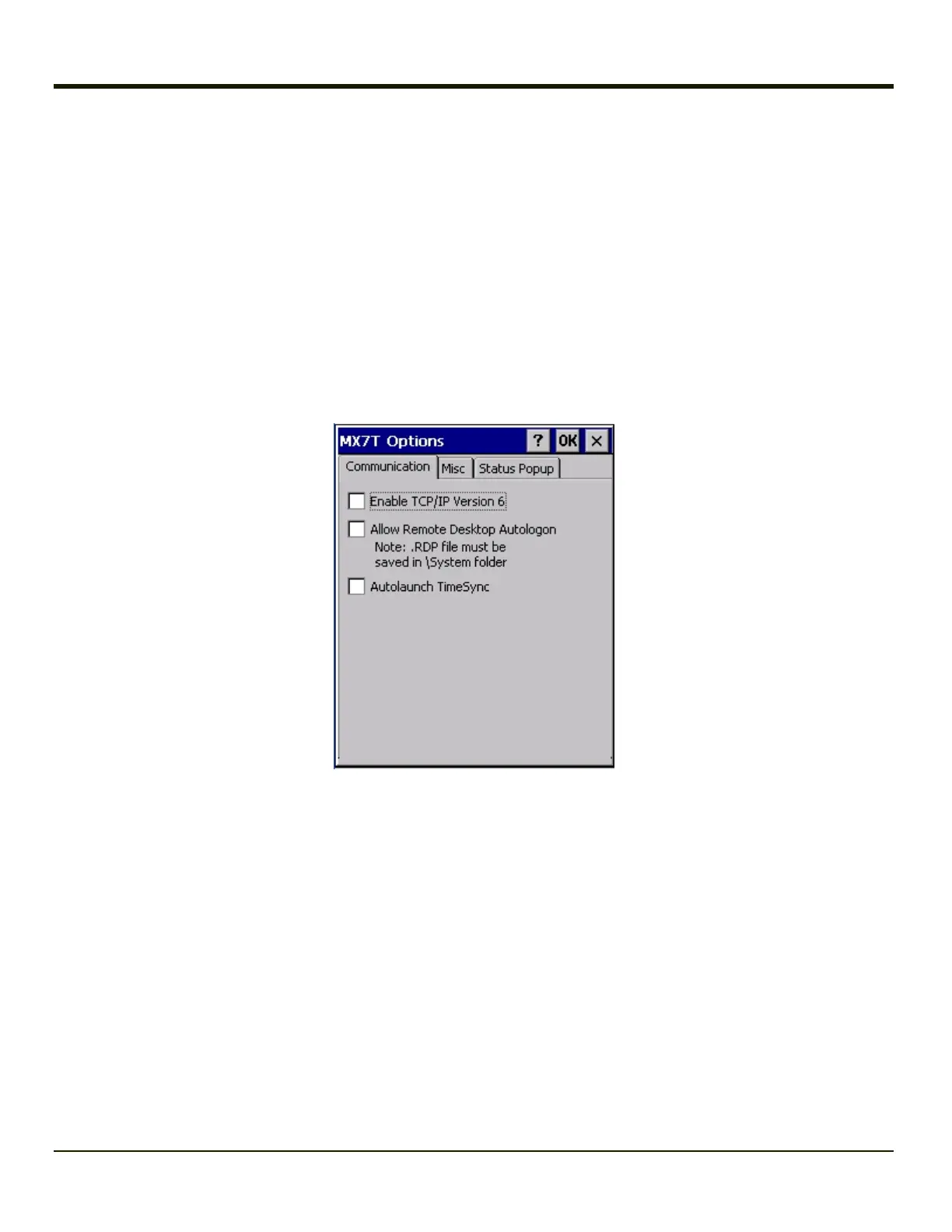

Communication
Options on this tab configure communication options for the MX7 Tecton.
Enable TCP/IP Version 6
By default, IPv6 is disabled on the MX7 Tecton. Check this checkbox to enable IPv6.
Allow Remote Desktop Autologon
By default, Remote Desktop Autologon is disabled. Check this checkbox to enable Remote Desktop Autologon.
Note: The .RDP file must be saved in the \System folder. When prompted, use the Save As button to save the .RDP file is
the \System directry. If the .RDP file is saved in the default root folder location, the .RDP file will not persist across a
warmboot.
4-153

Honeywell MX7 Tecton Specifications

General

Display diagonal	3.5 \
Display resolution	240 x 320 pixels
Display number of colors	-
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	SD
Maximum memory card size	4 GB
Processor family	PXA 320
Processor frequency	0.806 GHz
GPS (satellite)	No
Operating system installed	Windows CE 6.0
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.0+EDR
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 100 %
Battery capacity	2200 mAh
AC adapter output current	7.4 A
Product color	Black, Blue
Keyboard layout	Alphanumeric
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, EAN-13, GS1-128 (UCC/EAN-128), PLANET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	50 mm
Width	86 mm
Height	223 mm
Weight	595 g
