WARNING: Rotating the electronics housing with respect
to the sensor housing may damage the sensor electronics.
Once installed, the transmitter housing can be rotated to the desired orientation by
loosening the two setscrews on the sensor housing and then rotating the sensor
electronics with respect to the process connector.

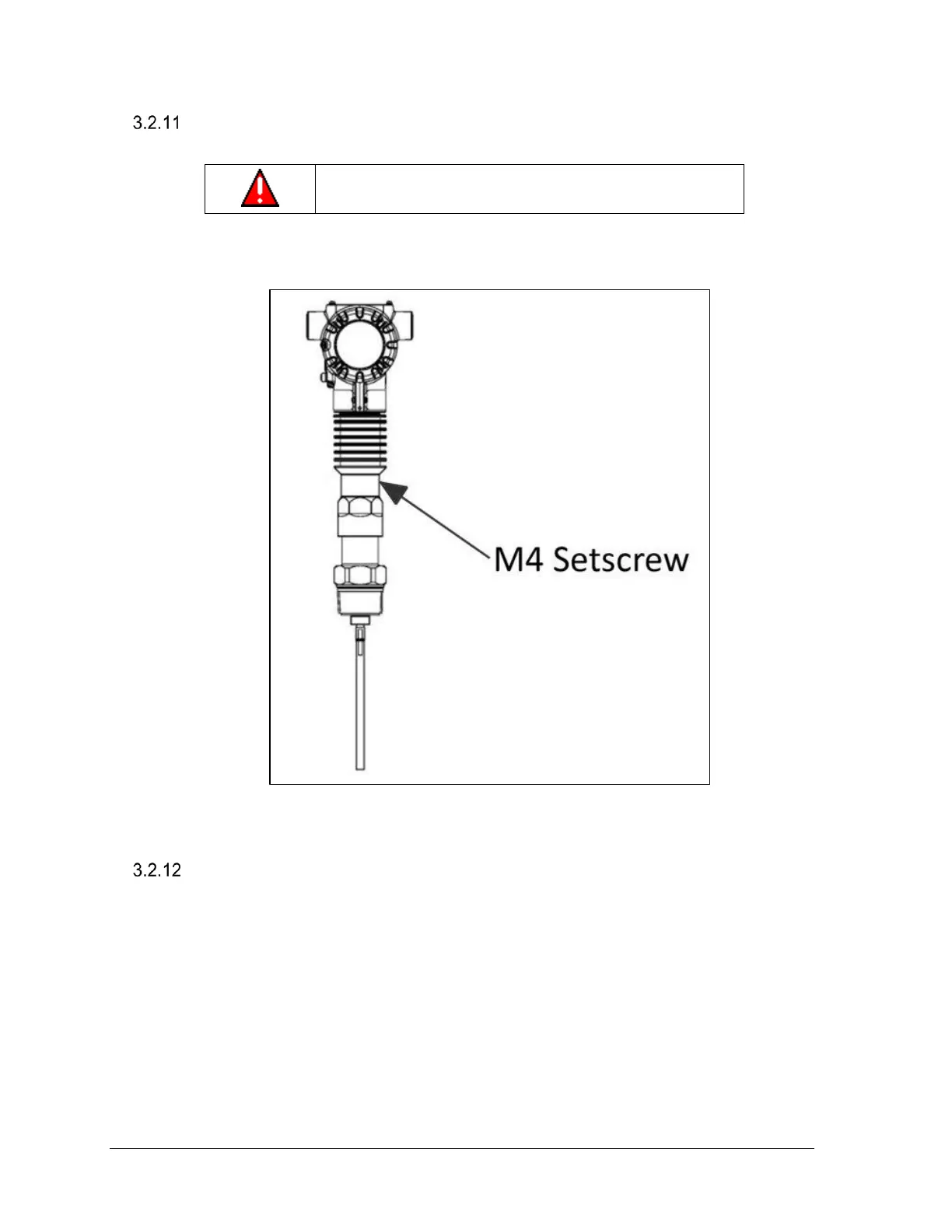

Figure 3-40: Rotate transmitter housing
Secure the probe
In tanks with turbulence, it may be necessary to secure the probe to the tank to prevent
probe damage, or contact with the tank wall. Depending on probe type, different methods
can be used. For wire probes with end weights, the end weight has an internal M10x1.5
thread. This thread can be used to attach mounting hardware such as an eyebolt for
example (customer supplied). Alternatively, the weight can be removed and a rope clamp
can be used to form a loop at the end. See Figure 3-41.
