Page 122 SLG 700 SmartLine Level Transmitter User’s Manual Revision 8
Good: The transmitter is operating normally
Bad: The transmitter has detected a critical fault condition.

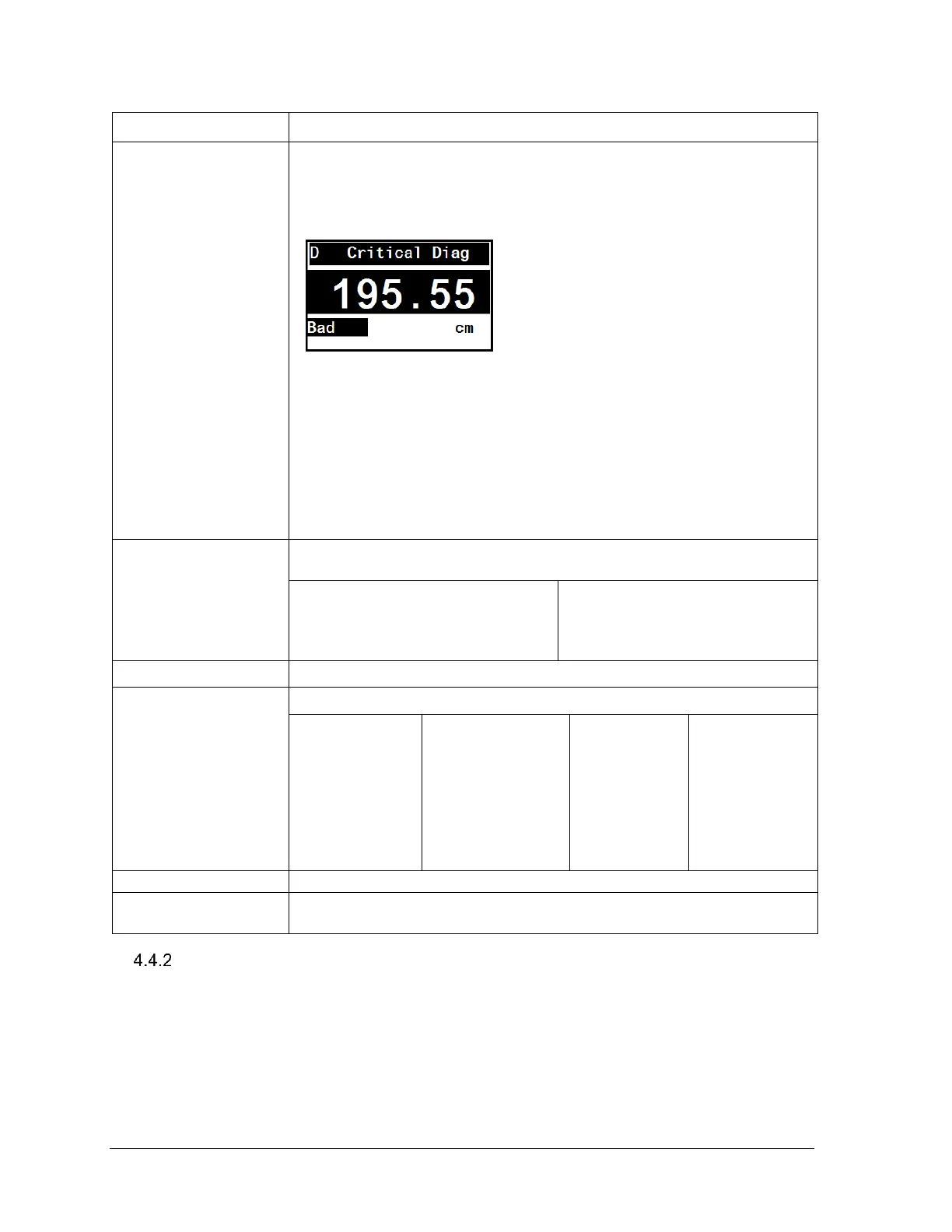

The PV Status field will flash when this condition is present and the PV
Value will be displayed on a black background as follows:
Warning: When the status field indicates a Bad status, the displayed PV
value will represent the last known good value or will be set to 0 if the last
known good value does not exist. A Bad status indicates that the
displayed value may not represent the current process measurement and
should not be used for process monitor or control.
Unc: Uncertain (FF). The PV Value is outside of normal limits.
Uncertain (HART): The level cannot be found within the valid measuring
range. The transmitter will keep searching for a valid level and the current
is set to high saturation.
The Function Block Mode is only displayed for FOUNDATION Fieldbus
transmitters. The eight possible Modes are shown below.
OOS: Out Of Service
Auto: Automatic
Man: Manual
Cas: Cascade
RCas: Remote Cascade
Rout: Remote Output
IMan: Initialization Manual
LO: Local Override
User Configurable. This field has 14 characters
User Configurable. This field has 8 characters
Guided Wave
Radar Level:
ft, in, m, cm,
mm
Guided Wave
Radar Volume:
ft
3
, in
3
, US gal,
Imp gal, barrels,
liquid barrels, yd
3
,
m
3
, liters
Other:
Percent (%)
milliamp (mA)
Custom Text
Level Rate:
ft/s, m/s,
in/min, m/h
The limits of the bar graph are user-configurable for each screen.
The limits of the trend graph are user-configurable for each screen.
The amount of time visible on the Trend graph is also configurable.
Button operation during monitoring
When the operator screens are active on the Advanced Display, the Increment and
Decrement buttons ( and ) can be used to move to the next or previous operator screen
without waiting for the rotation time to expire. Pressing the Enter button ( ) will call
the Main Menu.
