Honeywell SmartLine SLG 700 - Figure 2-8: Transition Zone Lengths and Minimum Blocking Distance High (BDH) for Single Lead (I.e. Rod and Rope) Probes in Oil; Figure 2-9 Minimum Blocking Distances, Steam Application for a Threaded HTHP Process Connector

Revision 8 SLG 700 SmartLine Level Transmitter User’s Manual Page 25

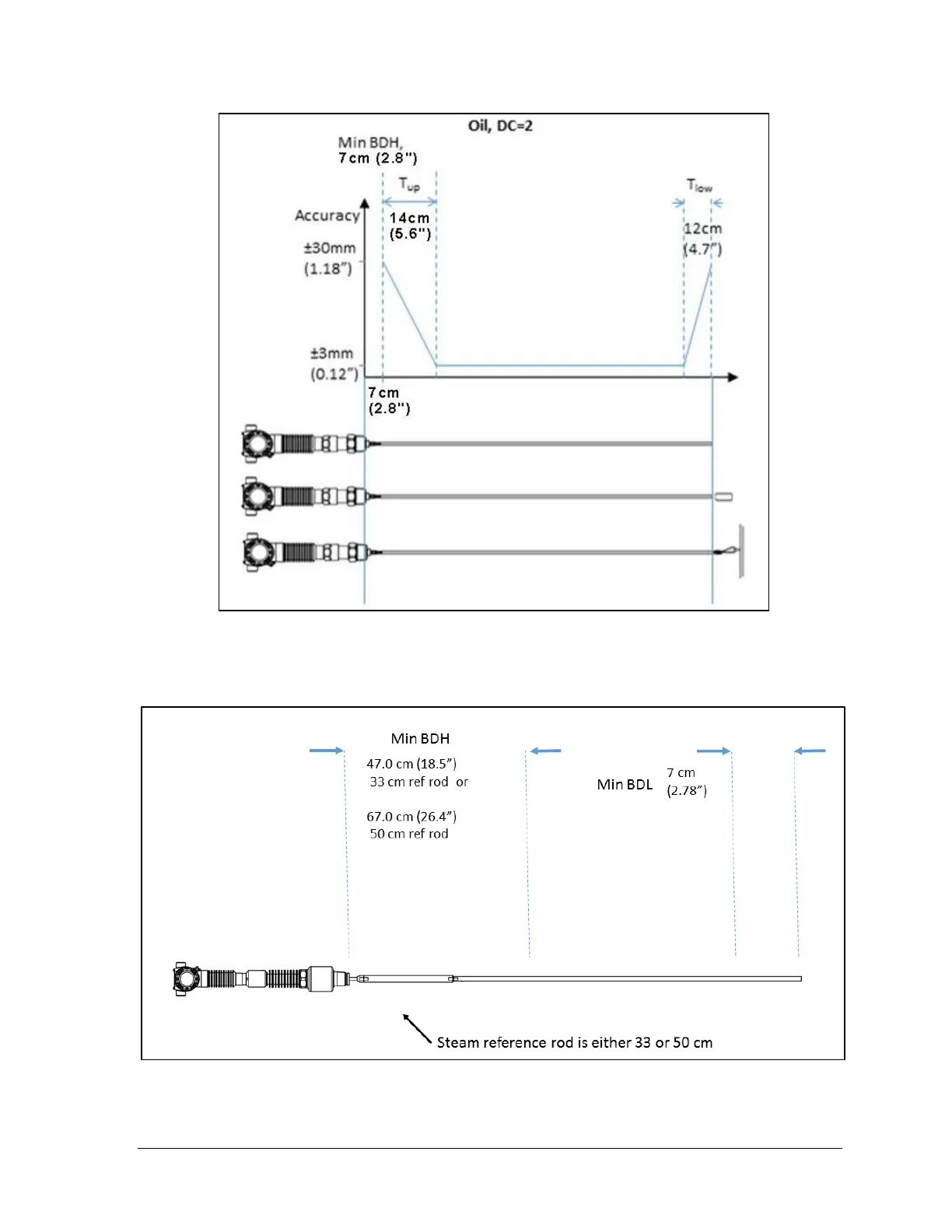

Figure 2-8: Transition zone lengths and minimum blocking distance high (BDH) for
single lead (i.e. rod and rope) probes in oil.
Figure 2-9 Minimum blocking distances, steam application for a threaded HTHP
process connector
