Revision 8 SLG 700 SmartLine Level Transmitter User’s Manual Page 79
Nozzle mount
The transmitter can be mounted to a tank nozzle using the appropriate flange. Table 3-17
shows recommended nozzle dimensions based on probe type.

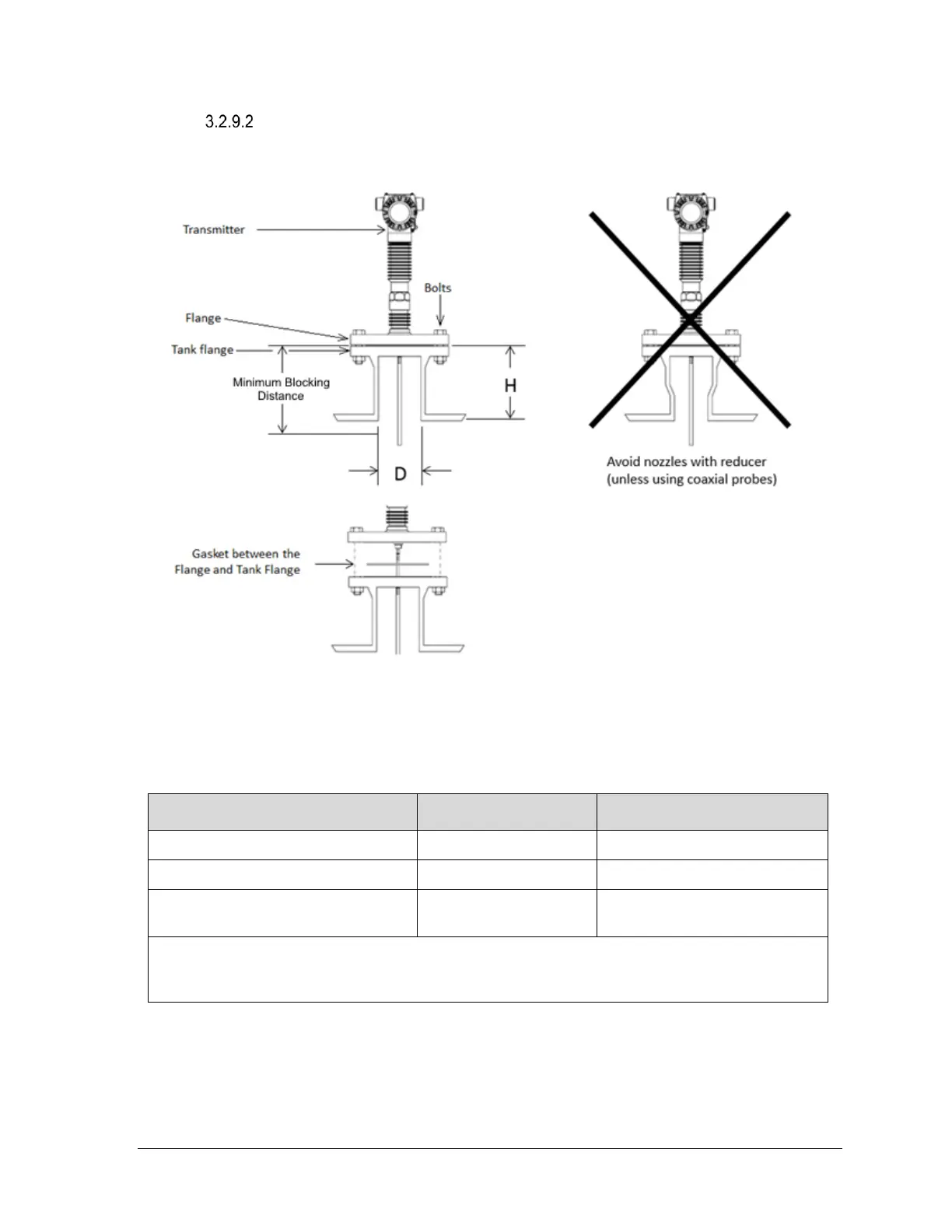

Figure 3-32: Flange mounting
Table 3-17: SLG720: Recommended nozzle dimensions
Single probe
(rod/wire)
Coaxial probe
Recommended nozzle diameter (D)
6” (150mm)
> probe diameter
Minimum nozzle diameter (D)
2” (50mm)
> probe diameter
Recommended nozzle height (H)
4” (100mm) + nozzle
diameter (*)
N/A
(*) When using a flexible probe in nozzles taller than 6” (150mm) the SWB wire probe with
extension stud is recommended. SWB is an option in the model selection guide. It offers a
300mm rod extension to keep the section of the wire probe that is in the nozzle, from moving.
In certain applications, taller nozzles may be accommodated but near zone performance at the
exit of the nozzle may be reduced. For nozzle dimensions that do not meet the requirements
outlined in Table 3-17 contact the Honeywell Technical Assistance Center.
