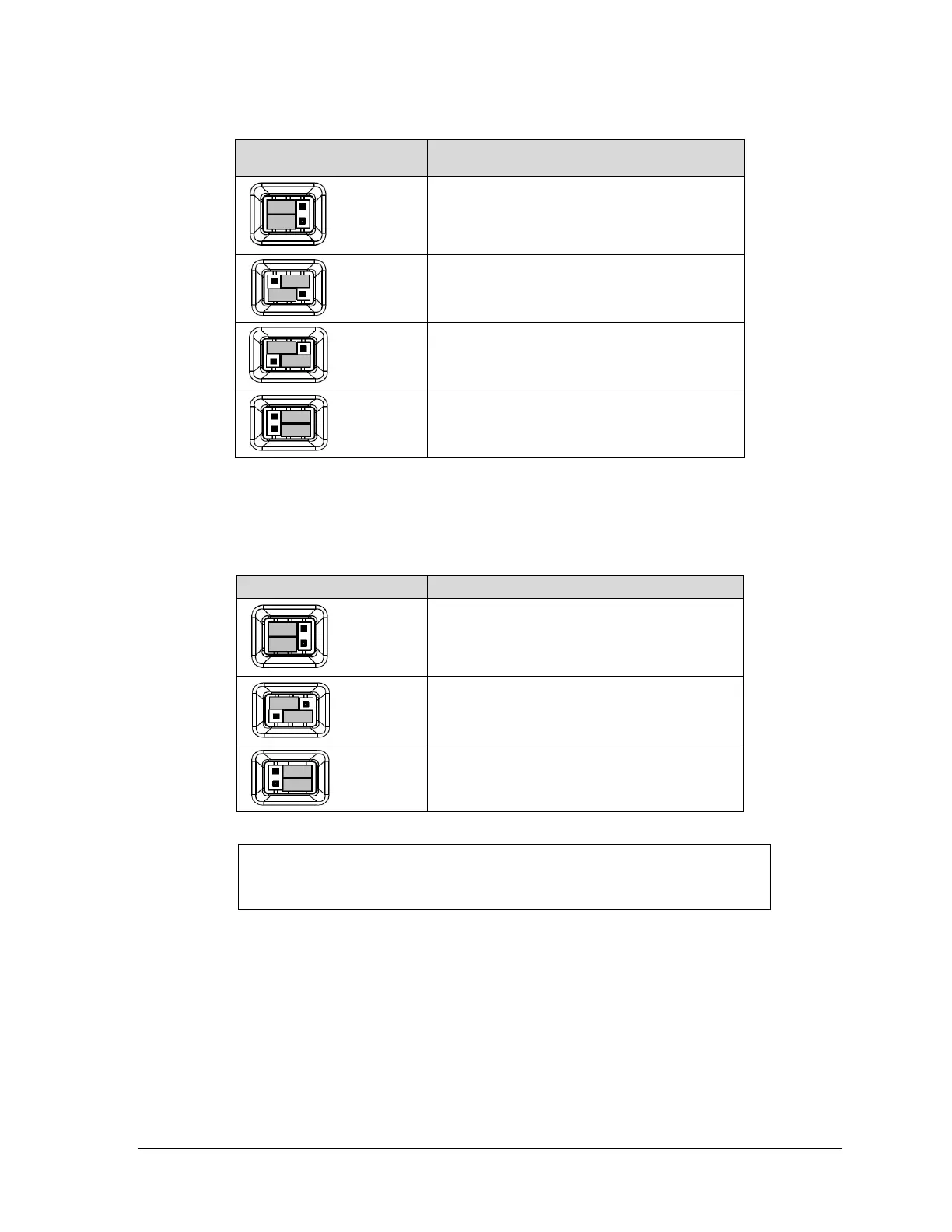

Table 4-10: HART Failsafe and Write Protect Jumpers
Jumper
Arrangements
Description
Failsafe = UP (High)
Write Protect = OFF (Not Protected)
Failsafe = DOWN (Low)
Write Protect = OFF (Not Protected)
Failsafe = UP (High)
Write Protect = ON (Protected)
Failsafe = DOWN (Low)
Write Protect = On (Protected)
Table 4-11: FOUNDATION Fieldbus Simulation and Write Protect Jumpers
Description
Fieldbus Simulation Mode = OFF
Write Protect = OFF (Not Protected)
Fieldbus Simulation Mode = OFF
Write Protect = ON (Protected)
Fieldbus SIM Mode = ON
Write Protect = OFF (Not Protected)
Note:
Changes to configurations and calibrations are disabled when the
jumpers are set in the write-protect positions. Write-protect includes
disabling password access.
