Revision 8 SLG 700 SmartLine Level Transmitter User’s Manual Page 51

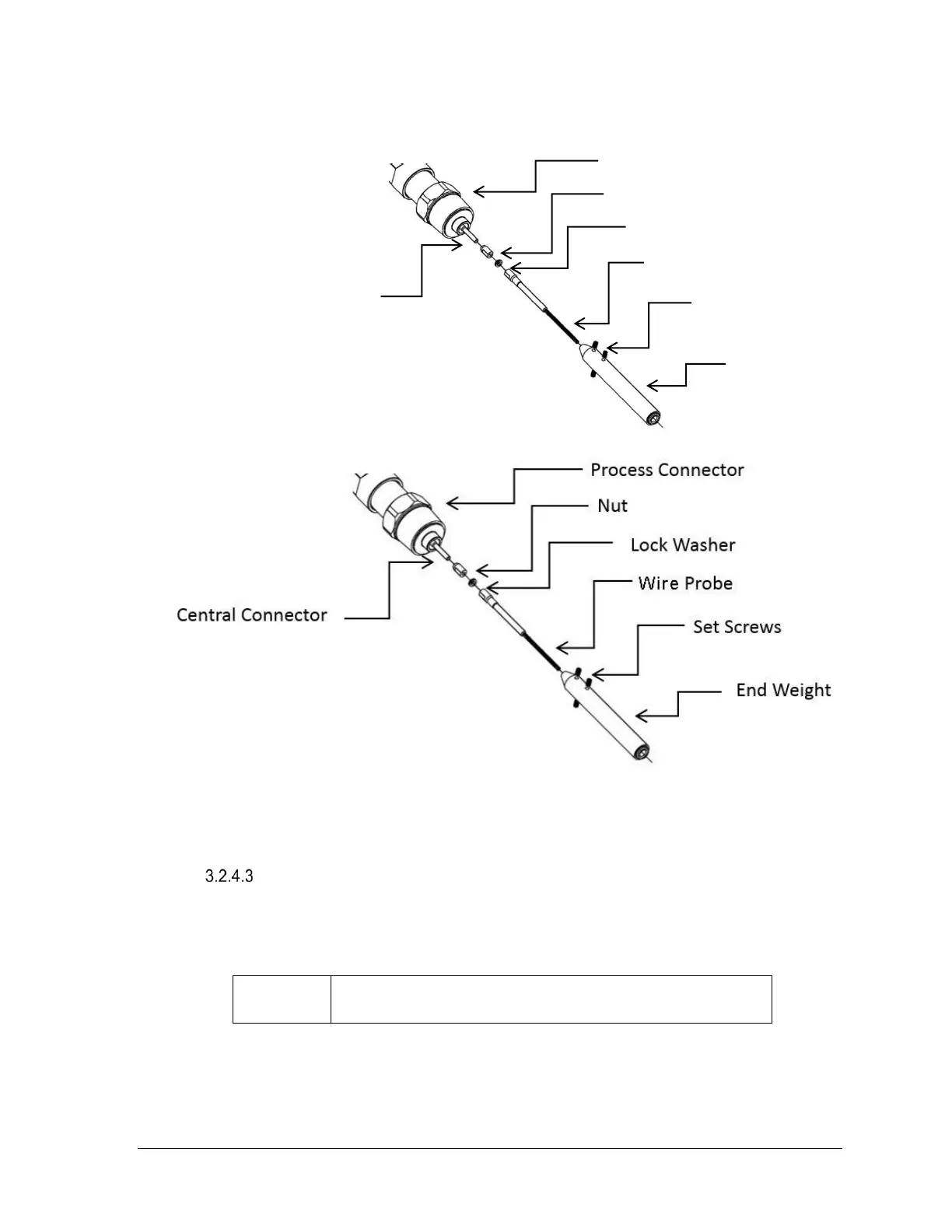

Figure 3-11: Wire probe assembly
Coaxial probe assembly
The coaxial probe consists of an inner rod conductor, surrounded by an outer tube shield.
The concentricity of the inner rod inside of the outer tube is maintained by spacers placed
along the probe length. Depending on the final length of the probe, the construction
method may differ.
Note:
For the flanged HTHP, when constructing the probe, the nut
should not intrude into the body of the process connector.
Process Connector
Nut
Lock Washer
Rope Probe
Set Screws
End Weight
Central Connector
