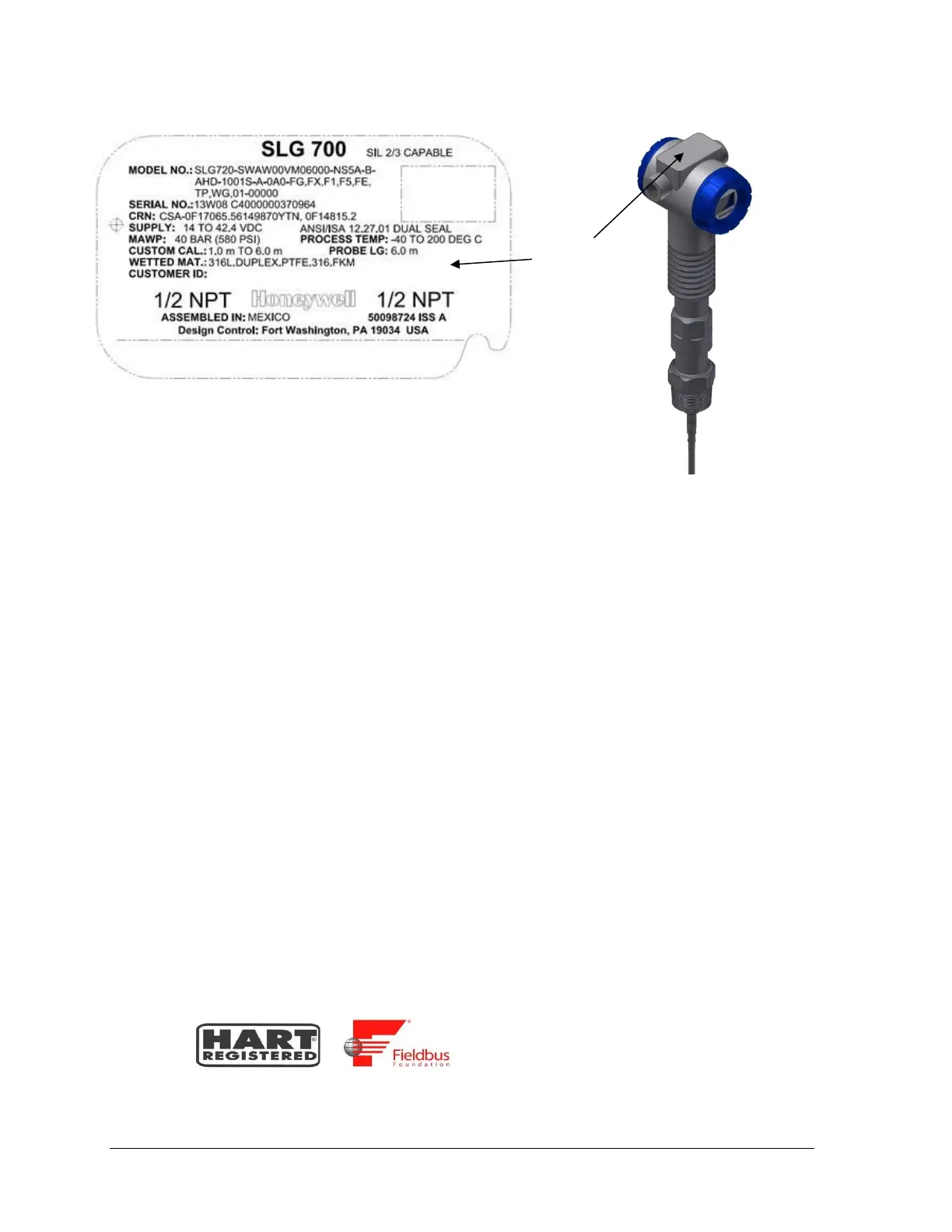

Figure 2-5: Transmitter nameplate example
The nameplate contains the following information:
MODEL NO.: The transmitter model number per the model selection guide.
SERIAL NO.: The unique transmitter serial number.
CRN: The CSA Registration number.
SUPPLY: The DC power supply voltage range as measured at the terminal assembly.
MAWP: Maximum Allowable Working Pressure.
PROCESS TEMPERATURE: The Process temperature range.
CUST. CAL.: Specifies any custom calibration, if ordered, otherwise blank.
PROBE LG: Length of the probe as defined in the model number.
WETTED MATERIAL: A list of the wetted materials.
CUSTOMER ID: User-defined identifier, if ordered, otherwise blank.
HOUSING CONNECTION TYPE: Conduit fitting size: ½” NPT or M20
ASSEMBLED IN / MADE BY HONEYWELL: The country where the transmitter was
assembled and tested.
SIL INFORMATION: SIL 2/3 Capable is indicated if SIL certification applies, otherwise blank.
COMMUNICATION INTERFACE: A symbol indicating the supplied communications
interface, HART or FOUNDATION Fieldbus.
