Honeywell SmartLine SLG 700 - Figure 3-18: Centering Disks for Wire and Rod Probes; Figure 3-19: Centering Disks for FEP Coated Wire and Rod Probes

Page 64 SLG 700 SmartLine Level Transmitter User’s Manual Revision 8

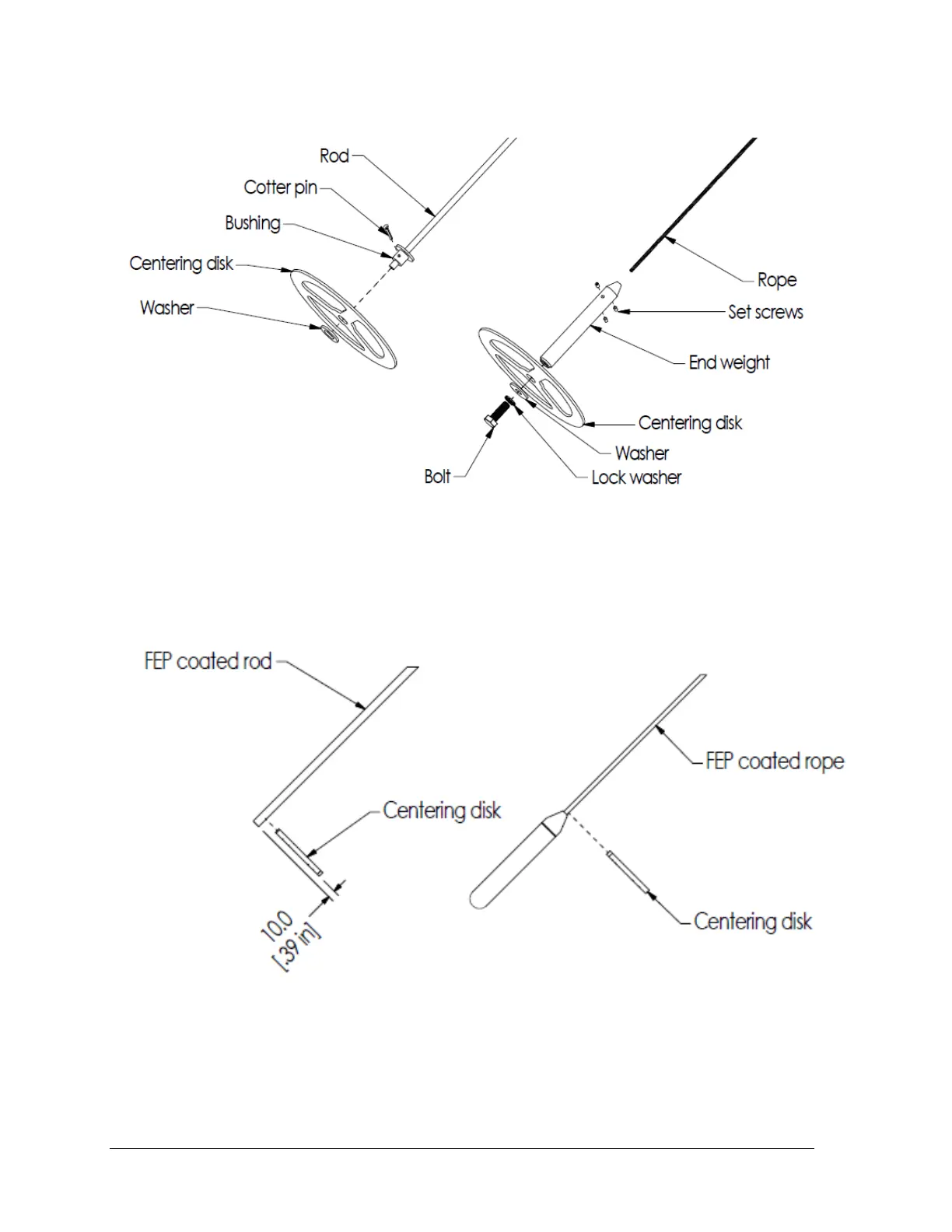

Figure 3-18: Centering disks for wire and rod probes.
Note: for Rod probe the cotter pin is placed underneath the disk and the washer to hold them
in place.
Figure 3-19: Centering disks for FEP coated wire and rod probes
