Honeywell SmartLine SLG 700 - SLG 700 Transmitter Nameplate; Figure 2-4: Example of a FF Network

Revision 8 SLG 700 SmartLine Level Transmitter User’s Manual Page 11

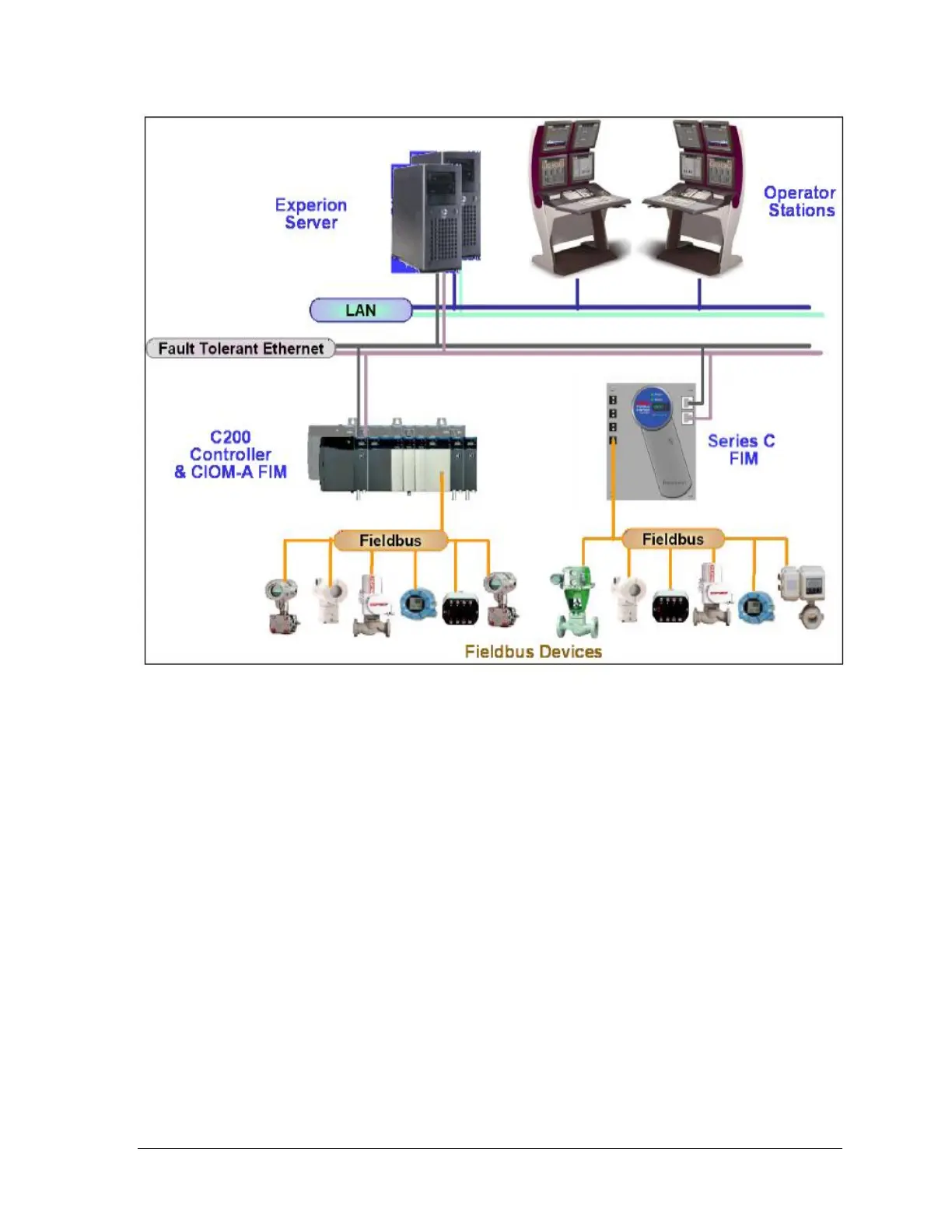

Figure 2-4: Example of a FF network
1.5 SLG 700 Transmitter nameplate
The Transmitter nameplate is mounted on the top of the electronics housing
(see Figure 2-5) and lists the following properties:
 Model number
 Physical configuration
 Power supply voltage
 Maximum working pressure rating
 Certification, if ordered (SIL and CRN)
