Function Blocks
3/99 Function Block Reference Guide 109
2.39 MUL Function Block
Description
The
MUL
label stands for
Multiplication Mathematical operation (2 Inputs)
.
This block is part of the
Math

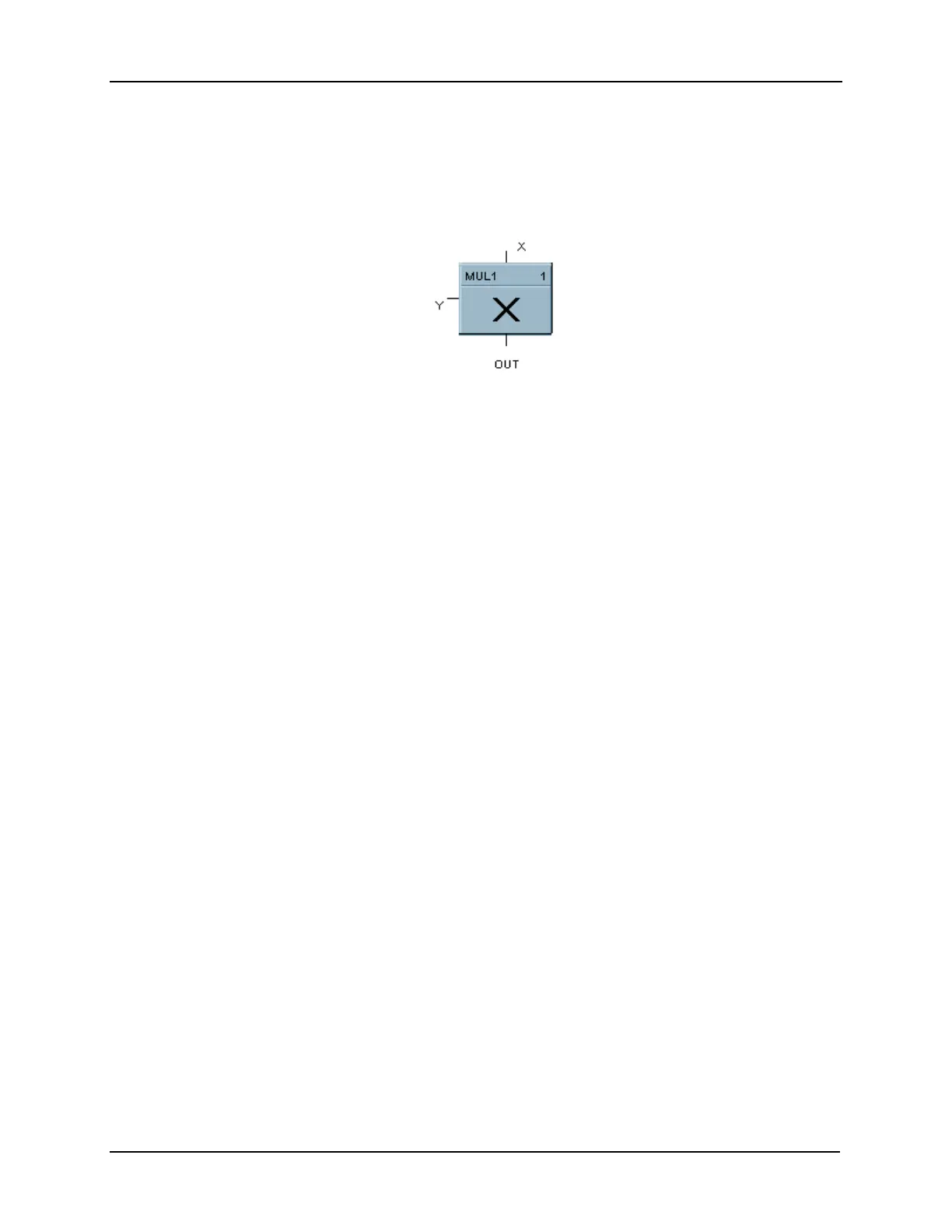

category. It looks like this graphically on the Control Builder.
Function
Multiplies one analog input value (X) by another (Y).
•
OUT = X * Y.
Input
X = First analog value
Y = Second analog value
Output
OUT = Calculated analog value
Block Properties
Double click on the function block to access the function block properties dialog box.
Block Order (Read Only)
You can change the assigned execution order number by selecting “Execution Order” in the “Configure”
menu and arrange the order to suit your control strategy.
Continued next page
