Honeywell UMC800 Reference Guide

Function Blocks
3/99 Function Block Reference Guide 51
2.15 CARB Function Block,
continued
Configuration Parameters,
continued
TUNING
TAB

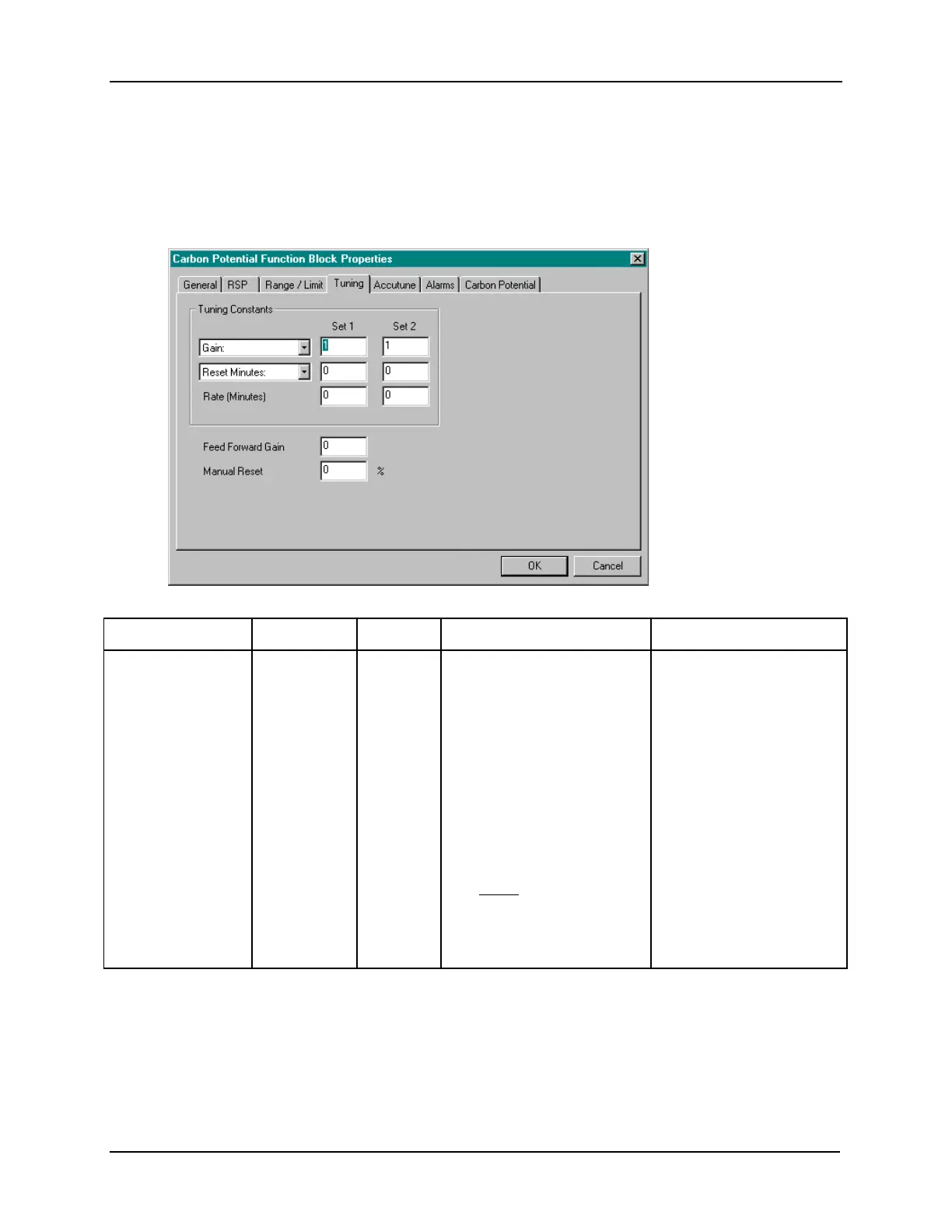

It looks like this graphically on the Control Builder. Table 2-14 describes the parameters and the value or
selection.
Table 2-14 Tuning Tab Configuration Parameters
Properties Group Parameter Index# Parameter Description Value or Selection
Tuning
Constants
Prop Band
or
Gain
0
PB1 or
Gain 1
30
PB2 or
gain 2
Proportional Band (PB
) -
is the percentage of the
range of the measured
variable for which a
proportional controller will
produce a 100% change in
its output.
Gain
- is the ratio of output
change(%) over the
measured variable change
(%) that caused it.
G = 100%
PB%
where PB is the
proportional Band (in %)
0.1 to 1000
0.1% to 1000%
continued next page
Continued next page
