Function Blocks
3/99 Function Block Reference Guide 207
2.70 TAHD Function Block,
continued
Example

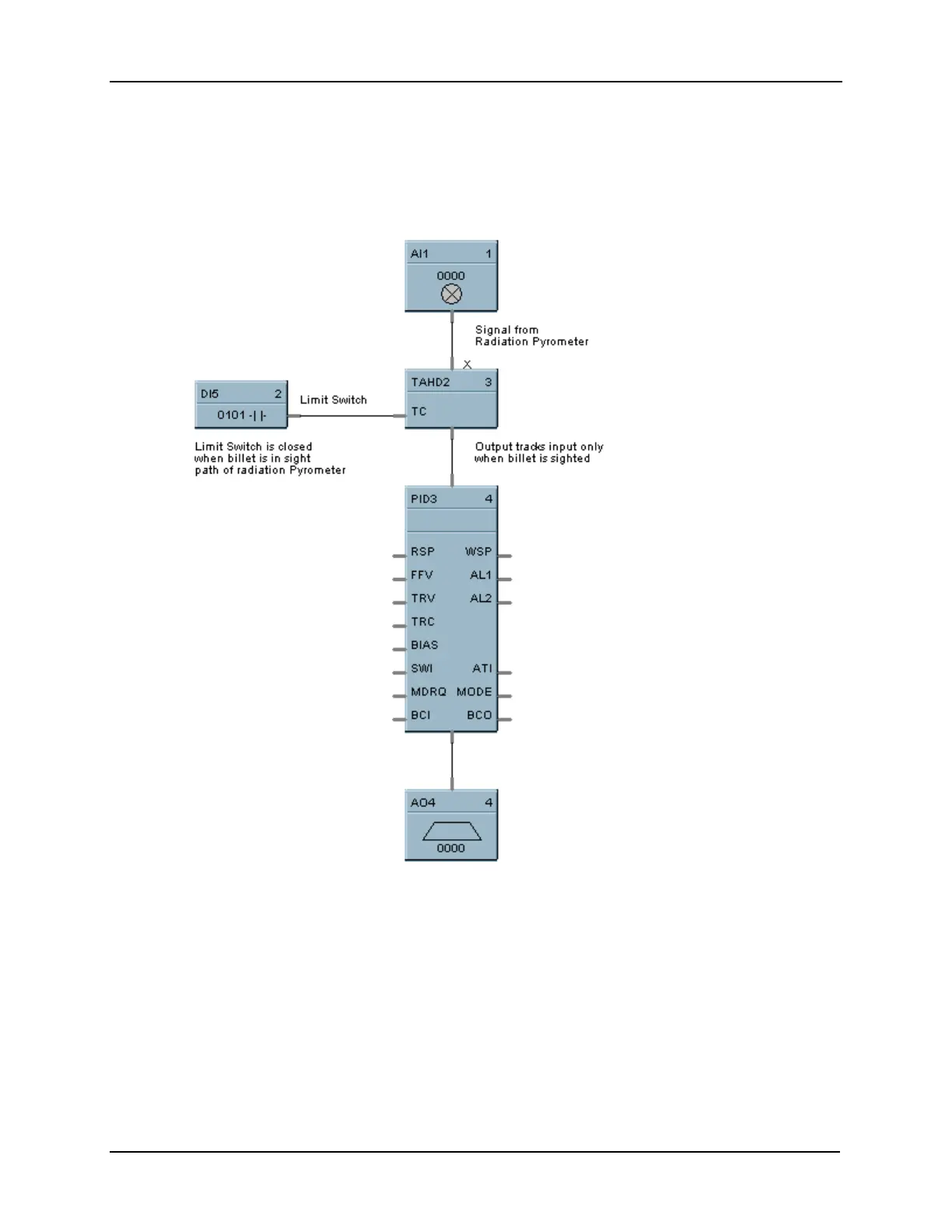

Figure 2-74 shows a function block diagram using a TAHD function block to track the Input signal for a
PID control loop in conjunction with a digital input.
Figure 2-74 TAHD Function Block Example
