Honeywell UMC800 - Example 1 - Basic PID Configuration Example; Figure 2-47 PID Function Block Example

Function Blocks
3/99 Function Block Reference Guide 153
2.50 PID Function Block,
continued
2.50.1 Example 1 - Basic PID Configuration Example

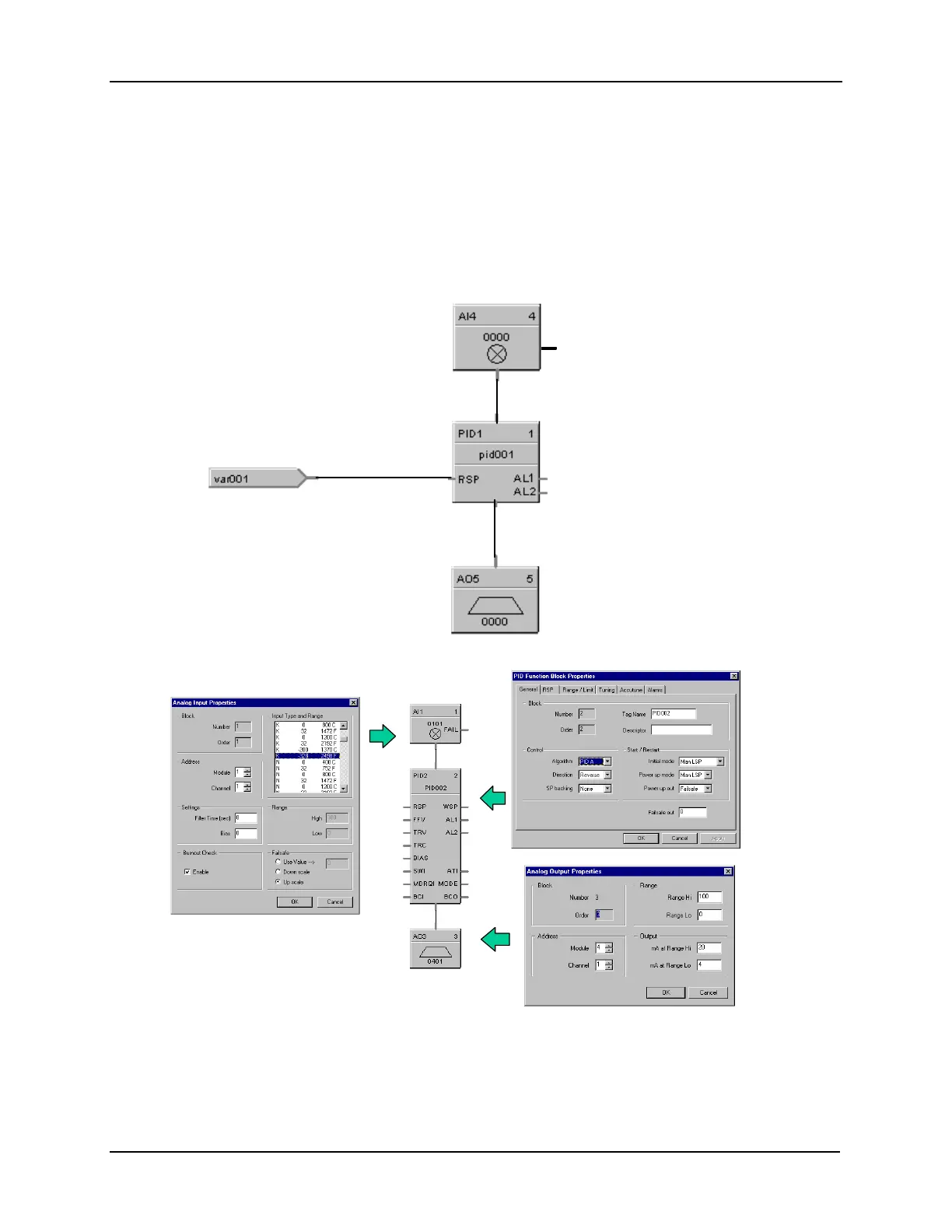

Figure 2-47 shows a Function Block Diagram using a simplified PID Configuration (Reference Only) and
its basic Configuration.
Analog Input block
PID Block (Simplified)
Analog Output Block
Analog Variable- used to provide
a remote setpoint value.
Remote Setpoint Input
Alarm Outputs (Digital Signal)
FAIL
Figure 2-47 PID Function Block Example
Continued next page
