Honeywell UMC800 Reference Guide

Function Blocks
Function Block Reference Guide 3/99242
2.81 XFR Function Block,
continued
Configuration Parameters,
continued
Table 2-68 XFR Switch Configuration Data
Properties Group Parameter Index# Parameter Description Value or Selection
Set Transfer Rates
Transfer to X
Rate
0 Rate at which output changes
from Y to X in engineering units
per minute
0 to 99999
Must be set at >=0
Transfer to Y
Rate
1 Rate at which output changes
from X to Y in engineering units
per minute
0 to 99999
Must be set at >=0
Example

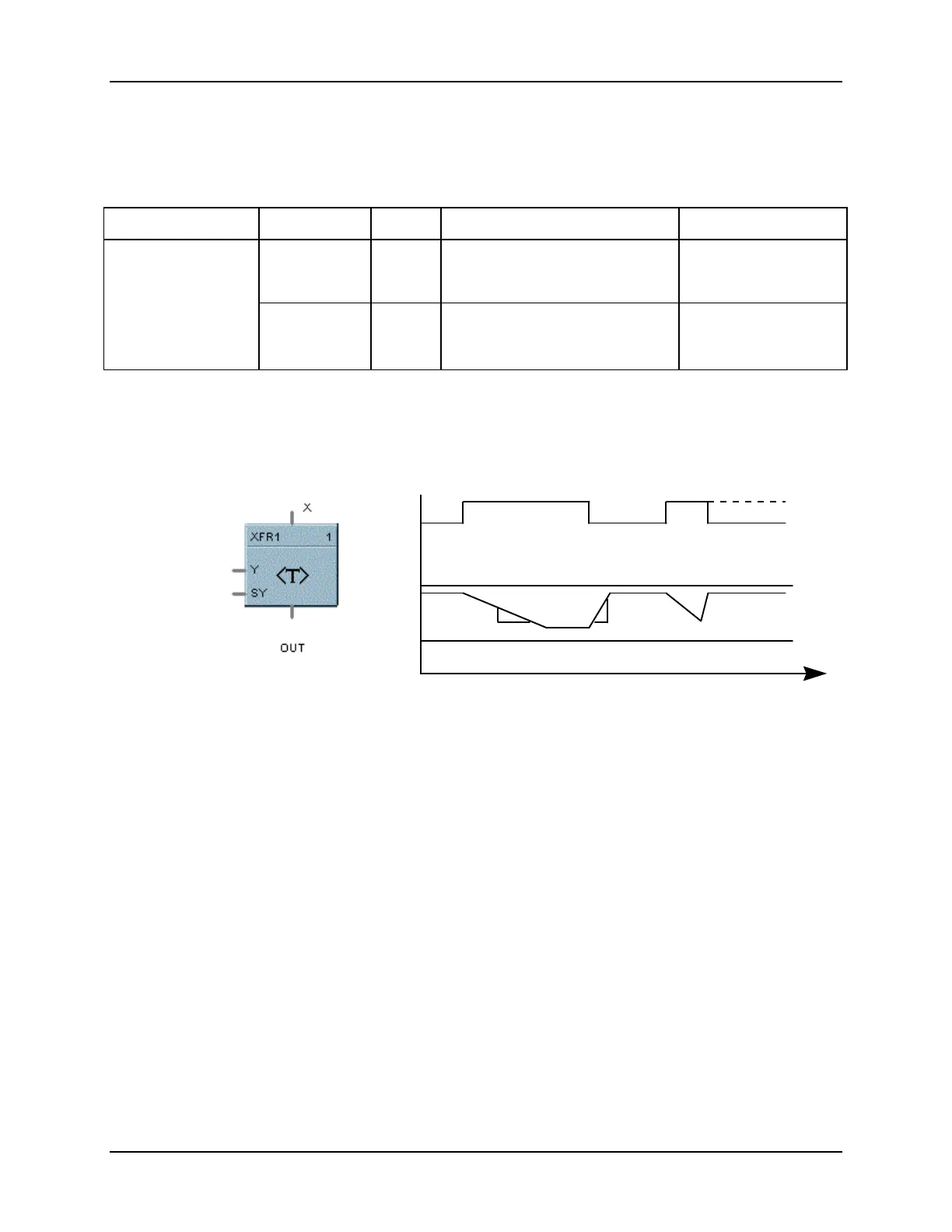

Figure 2-85 shows a Function Block Diagram using a XFR function block. It shows a typical switch action
for a XFR function block.
*SY
X
Y
OUT
YRATE
XRATE
ON
TIME
OFF
Figure 2-85 XFR Function Block Example
