Honeywell UMC800 Reference Guide

Function Blocks
Function Block Reference Guide 3/99122
2.45 ON/OFF Function Block,
continued
Configuration Parameters,
continued
RSP
TAB

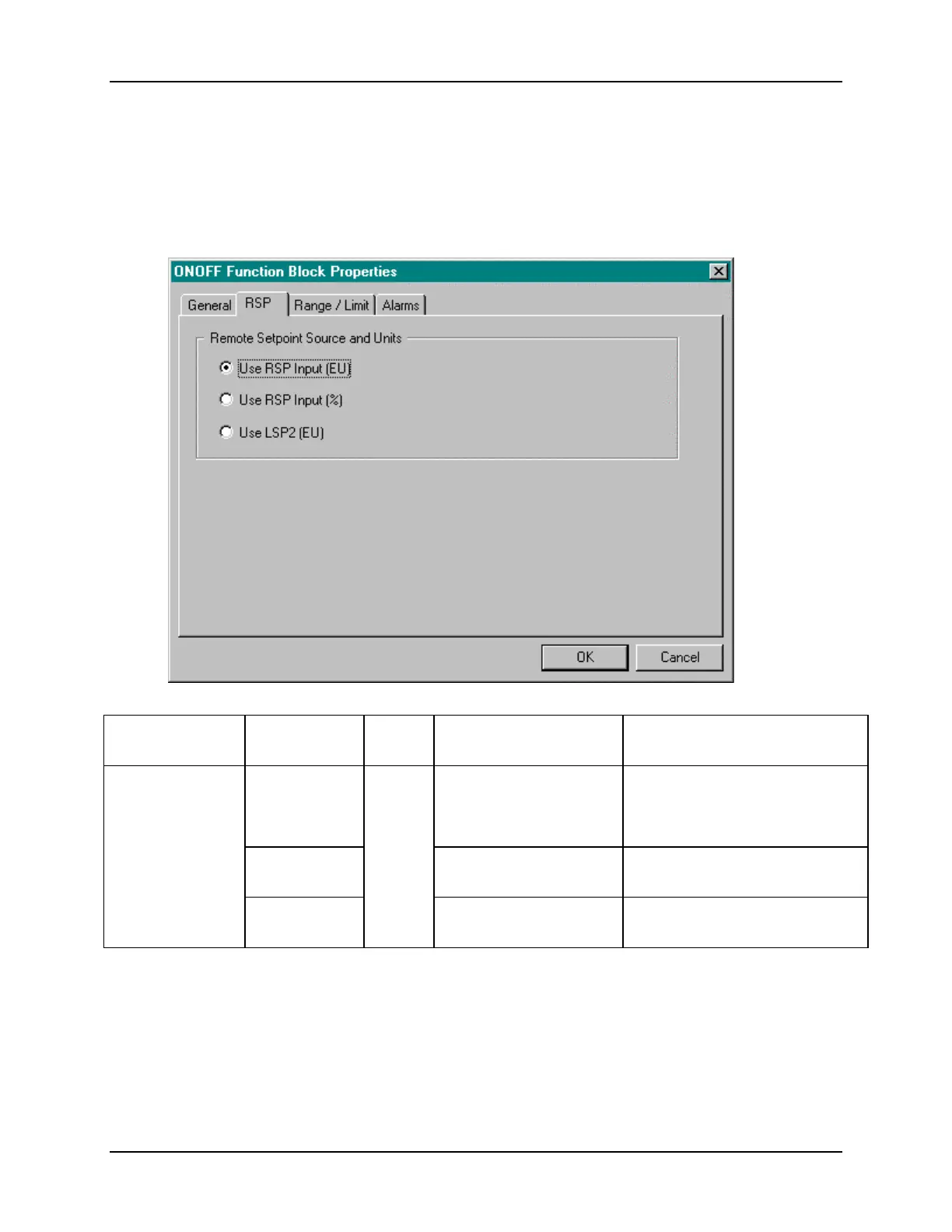

It looks like this graphically on the Control Builder. Table 2-35 describes the parameters and the value or
selection.
Table 2-35 RSP Tab Configuration Parameters
Properties
Function
Parameter Index# Parameter Description Value or Selection
Remote
Setpoint
Source and
Units
Use RSP
Input (EU)
N/A Use Remote Setpoint in
Engineering Units
Click on radio button to select
Use RSP
Input (%)
Use Remote Setpoint in
Percent
Click on radio button to select
Use LSP2
(EU)
Use Local Setpoint #2 in
Engineering Units
Click on radio button to select
Continued next page
