Function Blocks
3/99 Function Block Reference Guide 9
2.2 ABS Function Block,
continued
ABS Example

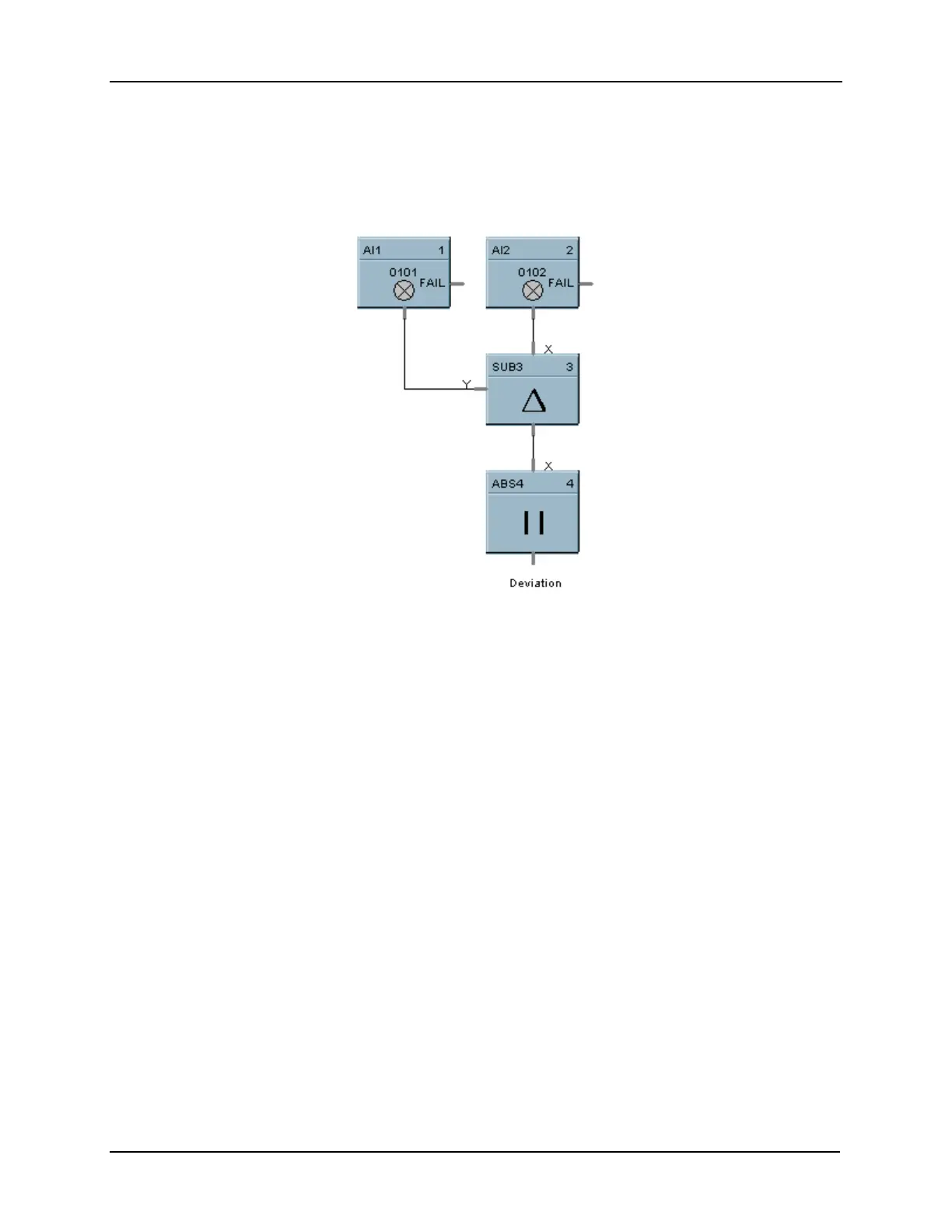

Figure 2-1 shows a Function Block Diagram configuration using an ABS function block to calculate the
absolute value of the deviation between two analog inputs.
Figure 2-1 ABS Function Block Example
