Function Blocks
3/99 Function Block Reference Guide 25
2.7 AMB Function Block,
continued
Configuration Parameters,
continued
RANGE/LIMIT
TAB

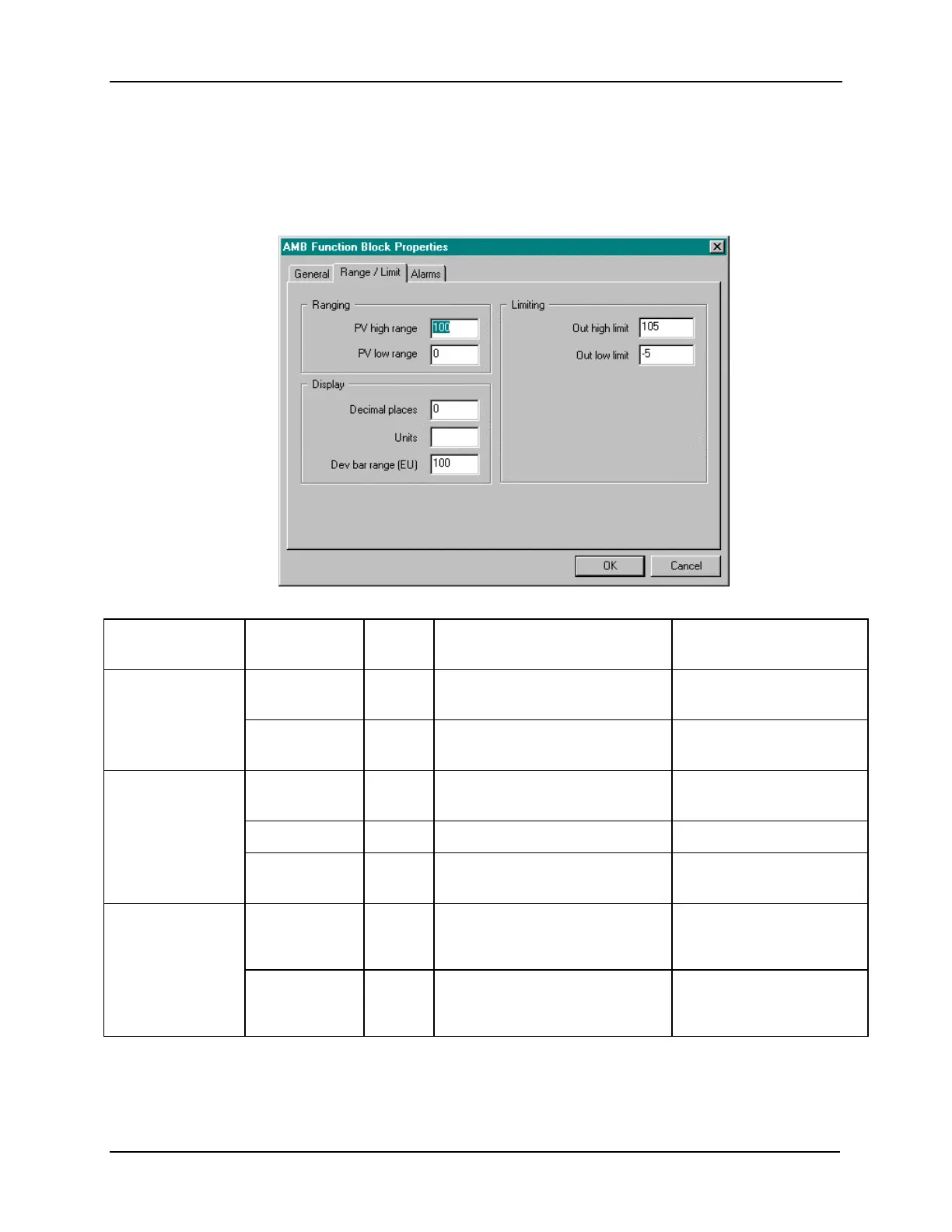

It looks like this graphically on the Control Builder.
Table 2-6
describes the parameters and the value or
selection.
Table 2-6 Range/Limit Tab Configuration Parameters
Properties
Function
Parameter Index# Parameter Description Value or Selection
Ranging PV High
range
0 PV High Range Value -5 to 105%
PV Low
Range
1 PV Low Range Value -5 to 105%
Display Decimal
Places
N/A Number of digits to display after
decimal point.
0 to 5
Units
N/A Text to display for EU 4 characters
DEV Bar
Range (EU)
N/A Deviation Bar Range on the
Operator Interface
-99999 to 99999
Limiting Out High
Limit
5 Output High Limit Value -
prevents the Output from going
above the value set here.
-5 to 105%
Out Low limit
6 Ouptut Low Limit Value -
prevents the Output from going
below the value set here.
-5 to 105%
Continued next page
