Function Blocks
3/99 Function Block Reference Guide 203
2.68 SW Function Block,
continued
Example

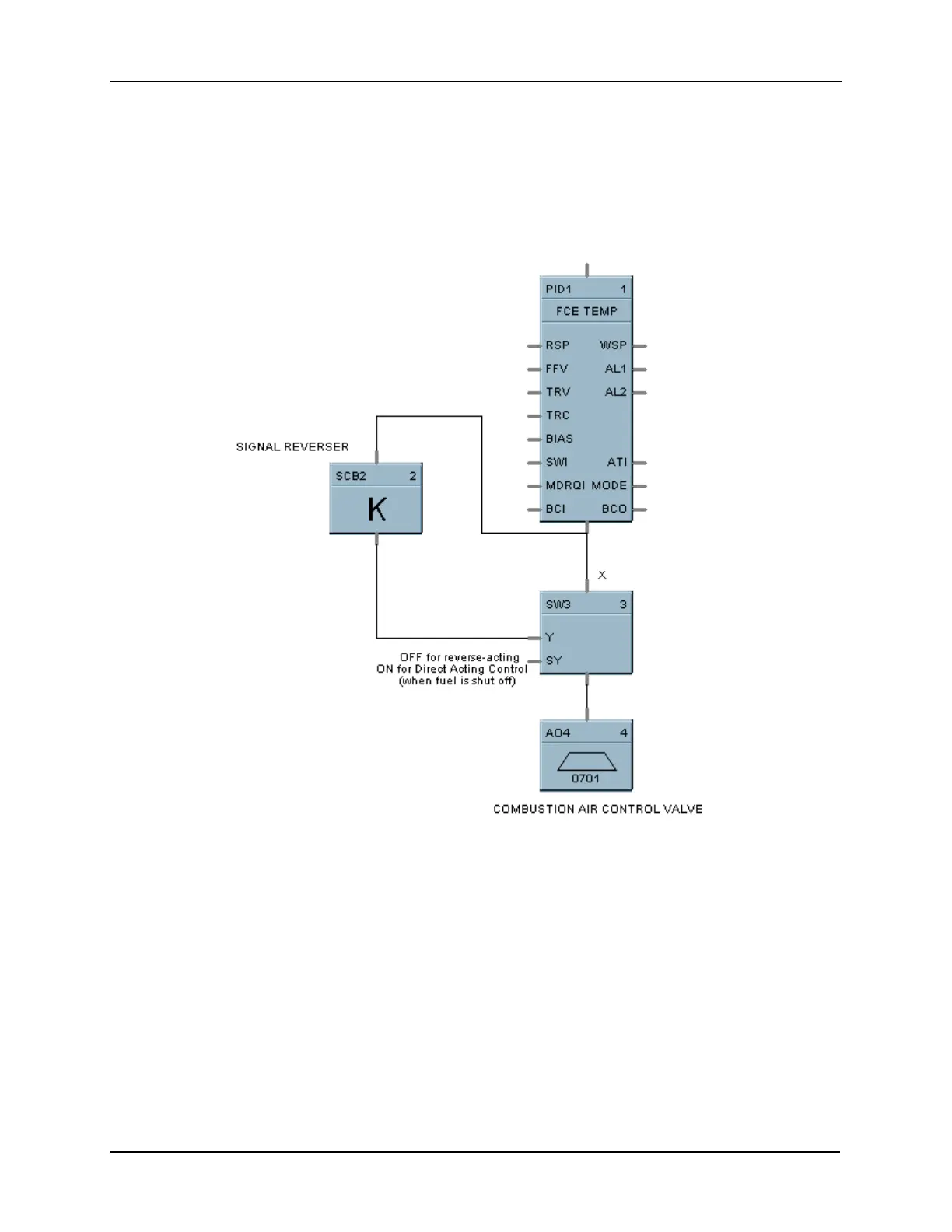

Figure 2-72 shows a Function Block Diagram using an SW function block to select control signal for
output.
Figure 2-72 SW Function Block Example
