Function Blocks
Function Block Reference Guide 3/99222
2.74 TPSC (3POS) Function Block,
continued
Configuration Parameters,
continued
TUNING
TAB

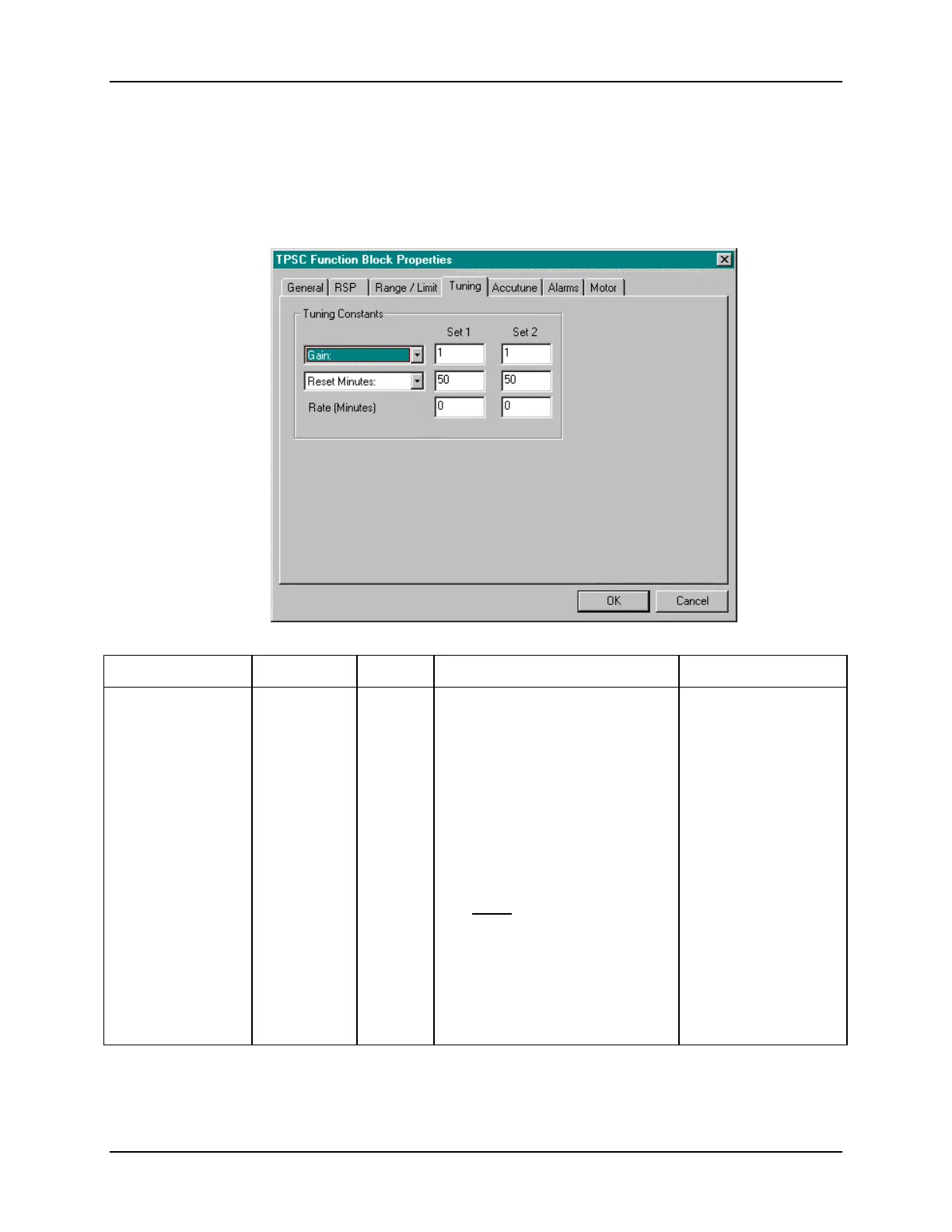

It looks like this graphically on the Control Builder. Table 2-61 describes the parameters and the value or
selection.
Table 2-61 Tuning
Tab Configuration Parameters
Properties Group Parameter Index# Parameter Description Value or Selection
Tuning
Constants
Prop Band
or
Gain
0
PB1 or
Gain1
29
PB2 or
Gain2
Proportional Band (PB)
- is the
percentage of the range of the
measured variable for which a
proportional controller will
produce a 100% change in its
output.
Gain
- is the ratio of output
change(%) over the measured
variable change (%) that caused
it.
G = 100%
PB%
where PB is the proportional
Band (in %)
0.1 to 1000
0.1% to 1000%
ATTENTION: Enter
values for tuning
set 1 and tuning set
2 in specified fields.
continued next page
