Function Blocks
Function Block Reference Guide 3/99188
2.60 SPP Function Block,
continued
2.60.4 Example 4 - Using the Setpoint Programmer AUX Output
The Auxiliary output of the Set Point Programmer (SPP)
block can be used to drive the RSP of a secondary PID
control block on a level basis. This precludes the use of
another SPP block. A different (or same) set point can be
configured for each programmer step. This can be used to
program pressure, %C, etc. for a second control loop.
TEMP
Pressure
Time
0
1800
Deg. F
Atm
1
10
2.6
Time
3.75
5.0
FAIL FAIL

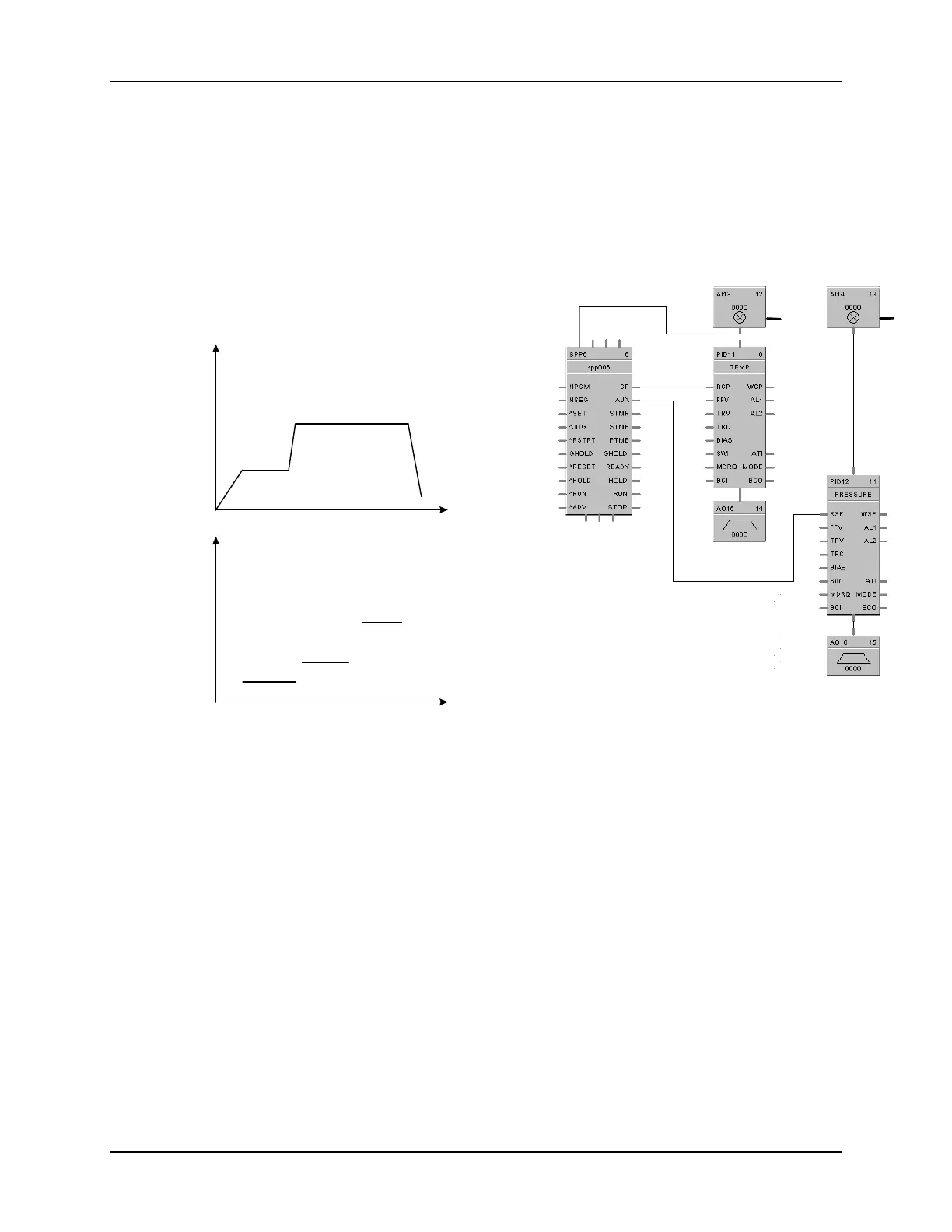

Figure 2-66 Using the Setpoint Programmer AUX Output
