2.58 SCB Function Block,
continued
Table 2-50 SCB Configuration Parameters
Properties Group Parameter Index# Parameter Description Value or Selection
Scale Factor
0 K - Multiplier (scaling) constant -99999 to 99999
Bias
1 Bias Constant - is used to
compensate the input for drift
of an input value due to
deterioration of a sensor, or
constant offset to an input.
-99999 to 99999
Example

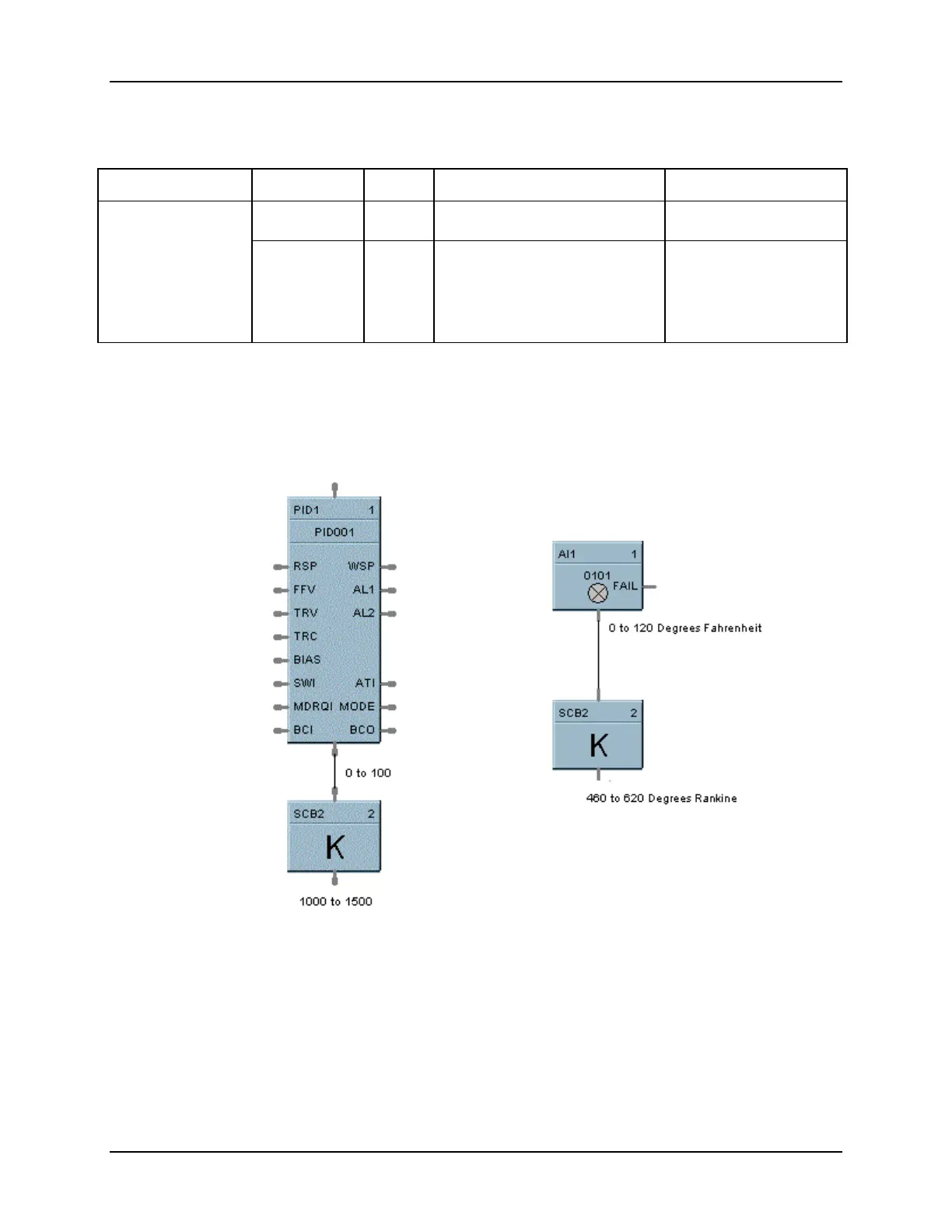

Figure 2-61 shows function block diagrams using a SCB function block.
Example 1
Scale Factor = 5
Bias = 1000
Example 2
Scale Factor = 1
Bias = 460
Figure 2-61 SCB Function Block Examples
