2.18 DEWP Function Block,
continued
Example

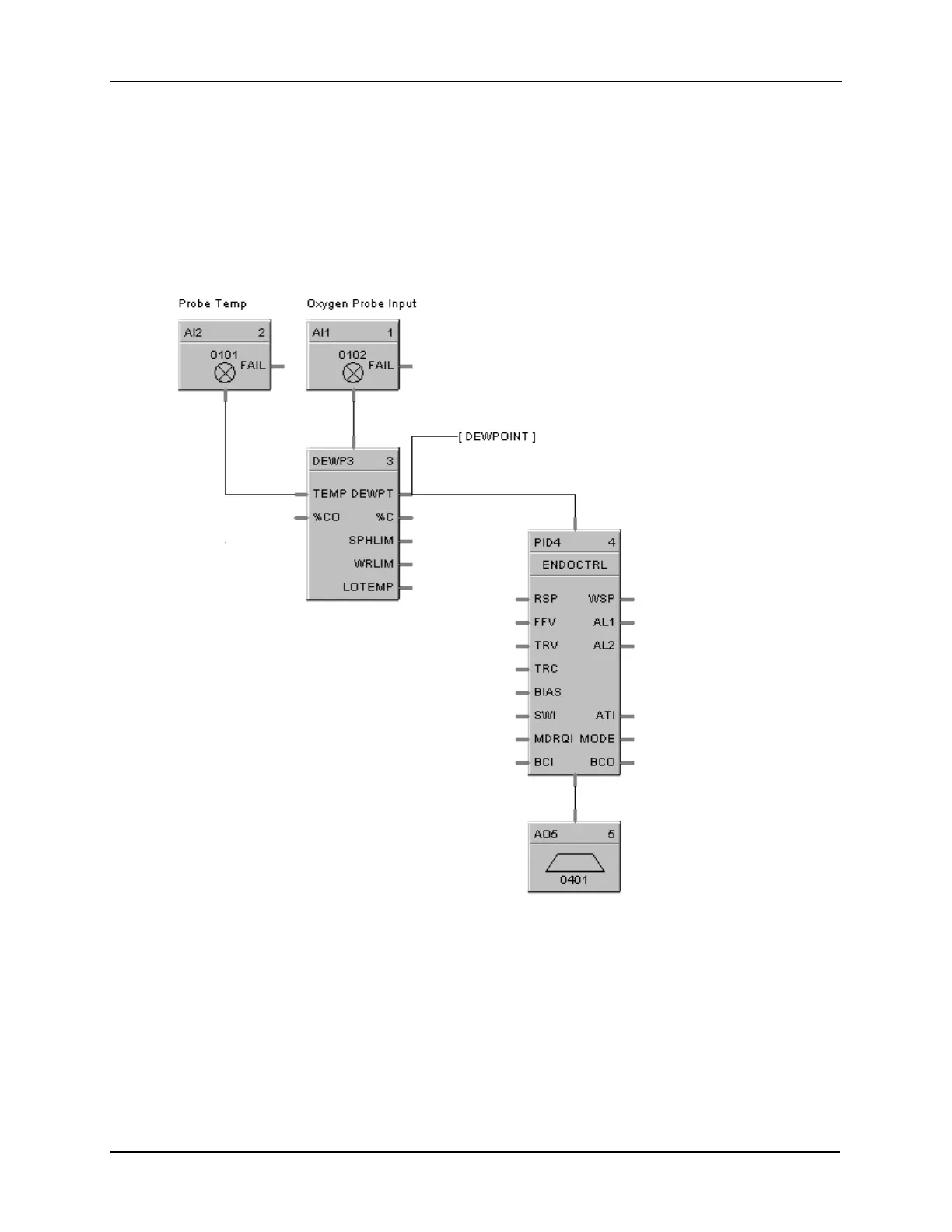

Figure 2-16 shows a Function Block Diagram using a DEWP function block. This application uses the Dew
Point function block to calculate dew point based on using a carbon probe. A typical example might be for
control of an endothermic atmosphere generator. Alternatively, a Honeywell dew point transmitter could
be used for a more direct measurement.
Figure 2-16 DEWP Function Block Example
