2.13 BCD Function Block,
continued
Block Properties
Double click on the function block to access the function block properties dialog box.
Block Order (Read Only)
You can change the assigned execution order number by selecting “Execution Order” in the “Configure”
menu and arrange the order to suit your control strategy.
Example

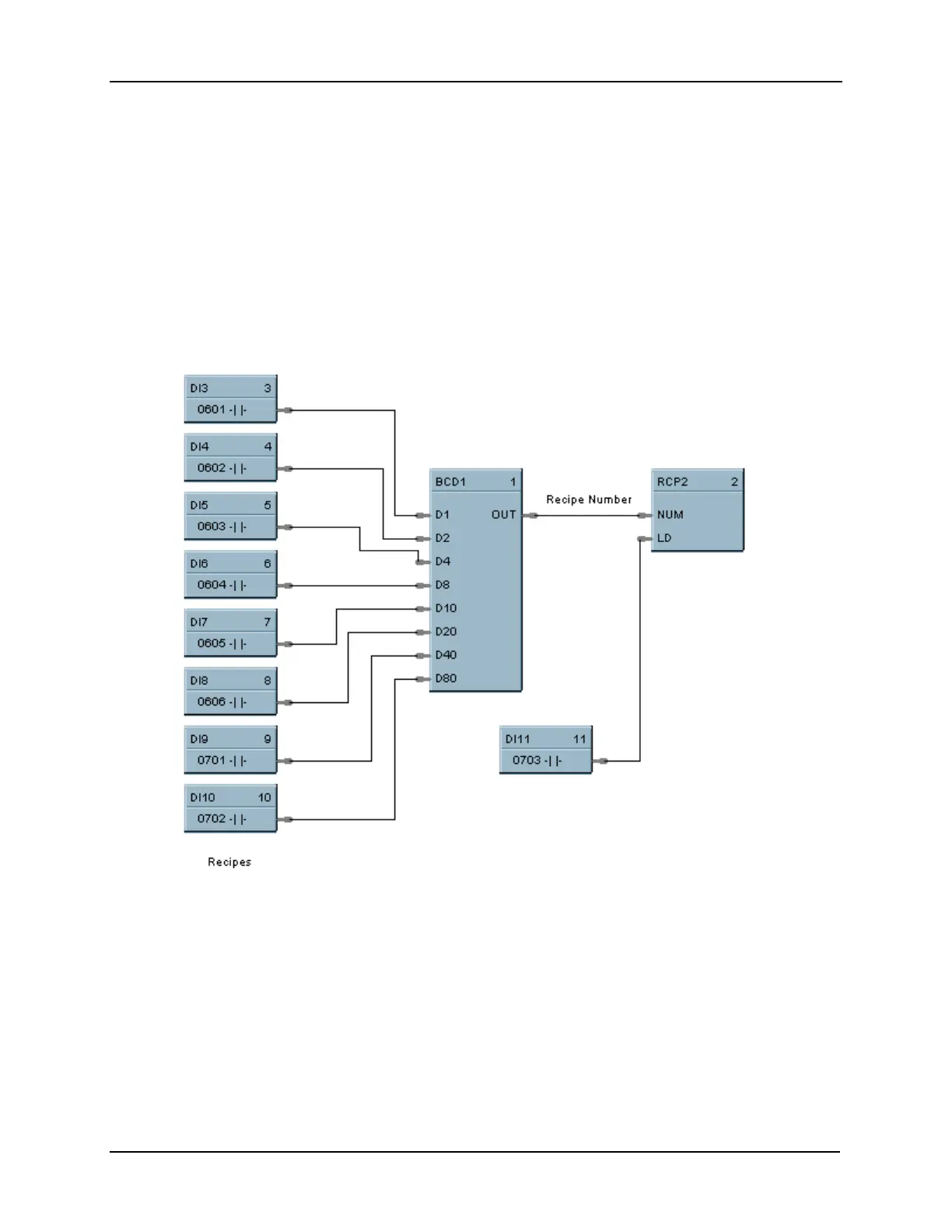

Figure 2-11 shows a Function Block Diagram configuration using a BCD function block to select a Recipe.
Figure 2-11 BCD Function Block Example
