Function Blocks
3/99
Function Block Reference Guide
179
2.59
SPEV Function Block,
continued

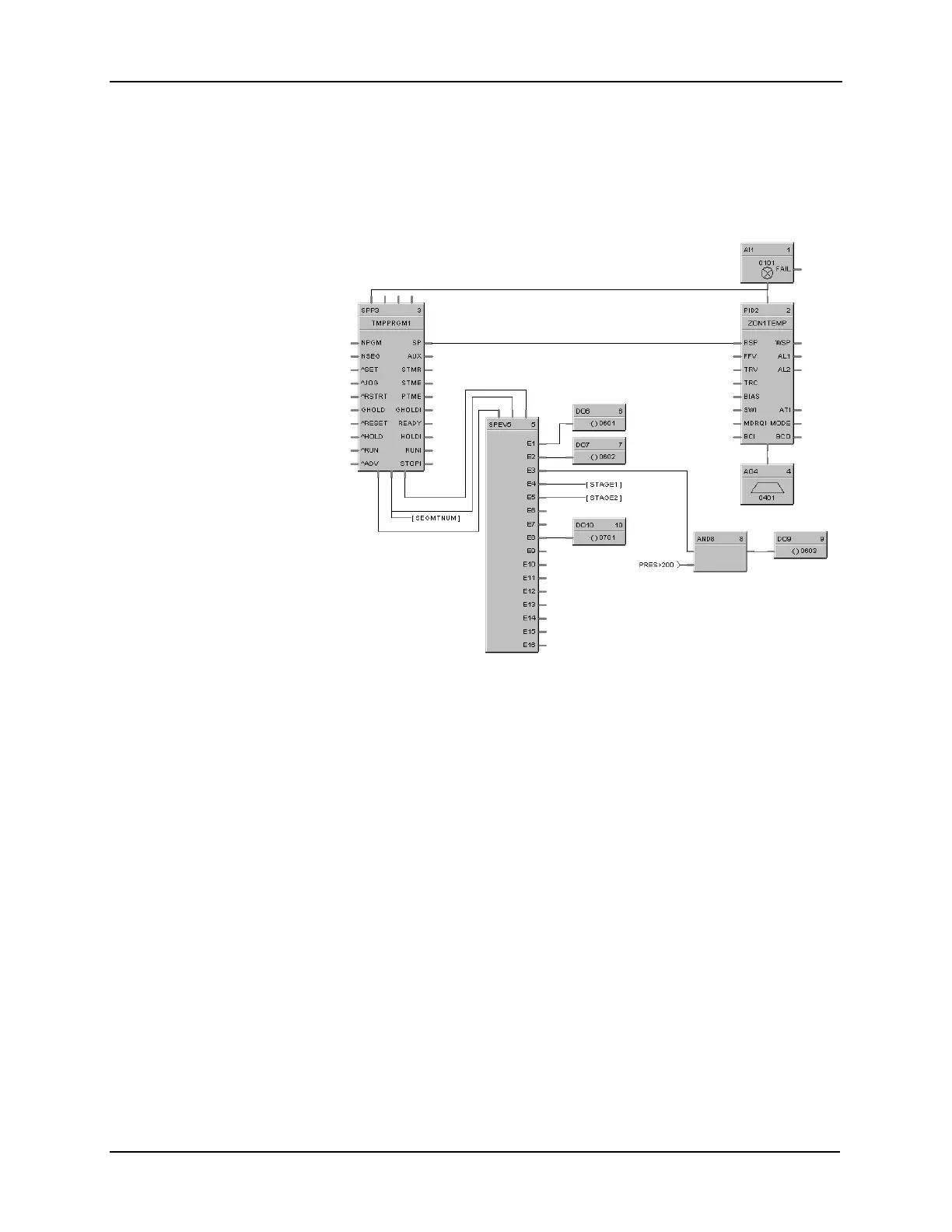

Example
Figure 2-62
shows a functio
n blo
ck di
agram using a SP
EV func
tion b
loc
k to p
rovi
de e
vent out
puts fo
r a
setpoin
t programm
er.
The SP programmer event output status may be dire
cted to
digital outputs, part
of control logic, or be dire
cted to signal
tags for use anywhere within t
he control configuration.
Figure 2-62 SPEV Function Block Example
