2.70 WCON Function Block,

continued

Configuration Parameters,

continued

Table 2-67 Write Configuration Data

Properties Group Parameter Index# Parameter Description Value or Selection

Set Write

Parameters

Block

Number

N/A Number of control block that

contains desired configuration

parameter

1 to 250

Parameter

Index#

N/A Index number of configuration

parameter to be modified

Select the index

number of the required

parameter from the

specific function block

reference data

Example

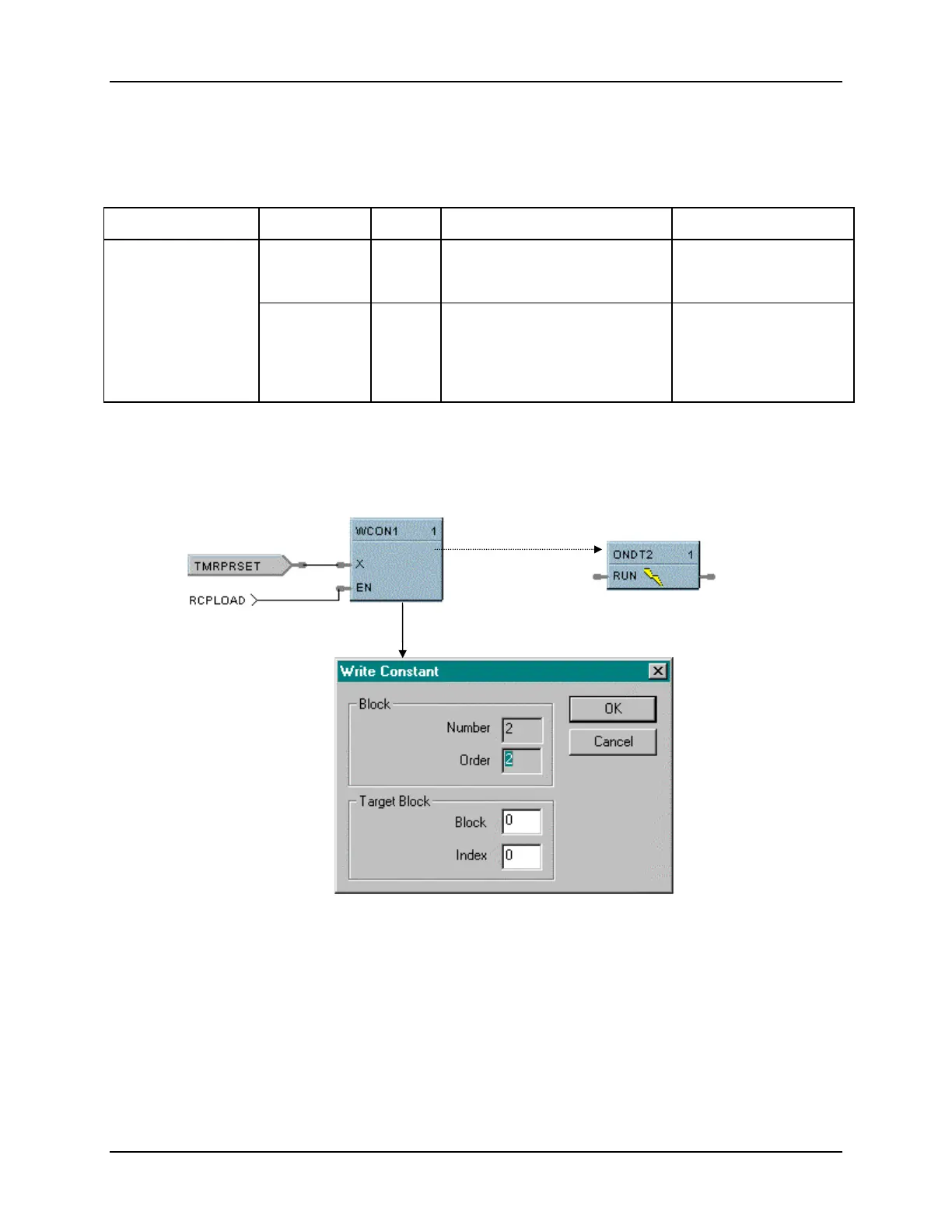

Figure 2-82 shows a Function Block Diagram using a WCON function block to write a new On Delay

Timer, time delay value.

Figure 2-82

WCON Function Block Example

Target Block

Block 2

Index #0
