Honeywell UMC800 Reference Guide

Function Blocks
Function Block Reference Guide 3/99228
2.74 TPSC (3POS) Function Block,
continued
Configuration Parameters,
continued
MOTOR
TAB

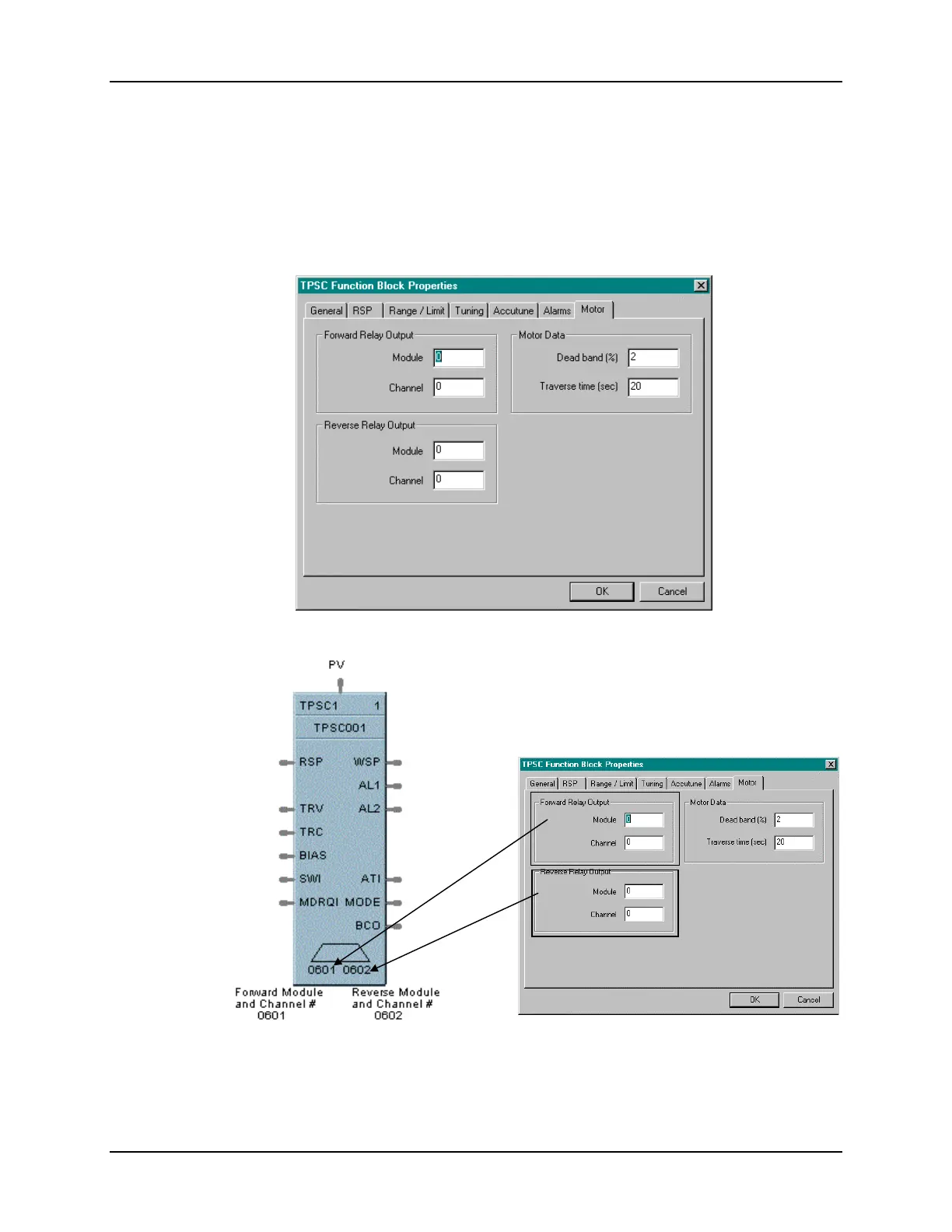

It looks like this graphically on the Control Builder. Three Position Step control is accomplished by
assigning the motor control relays physical address under this tab. Table 2-64 describes the parameters and
the value or selection.
Example
ATTENTION: TPSC output addresses are not checked for redundant assignment or mismatch with
controller hardware; therefore, use caution to insure unique address and correct I/O module.
Continued next page
