Chapter 7
Removing and Replacing Components
Memory Extender Board
152
Step 5. Pull on the extraction levers to unplug the memory extender board from the socket located on the midplane riser
board and remove the memory extender board from the chassis.

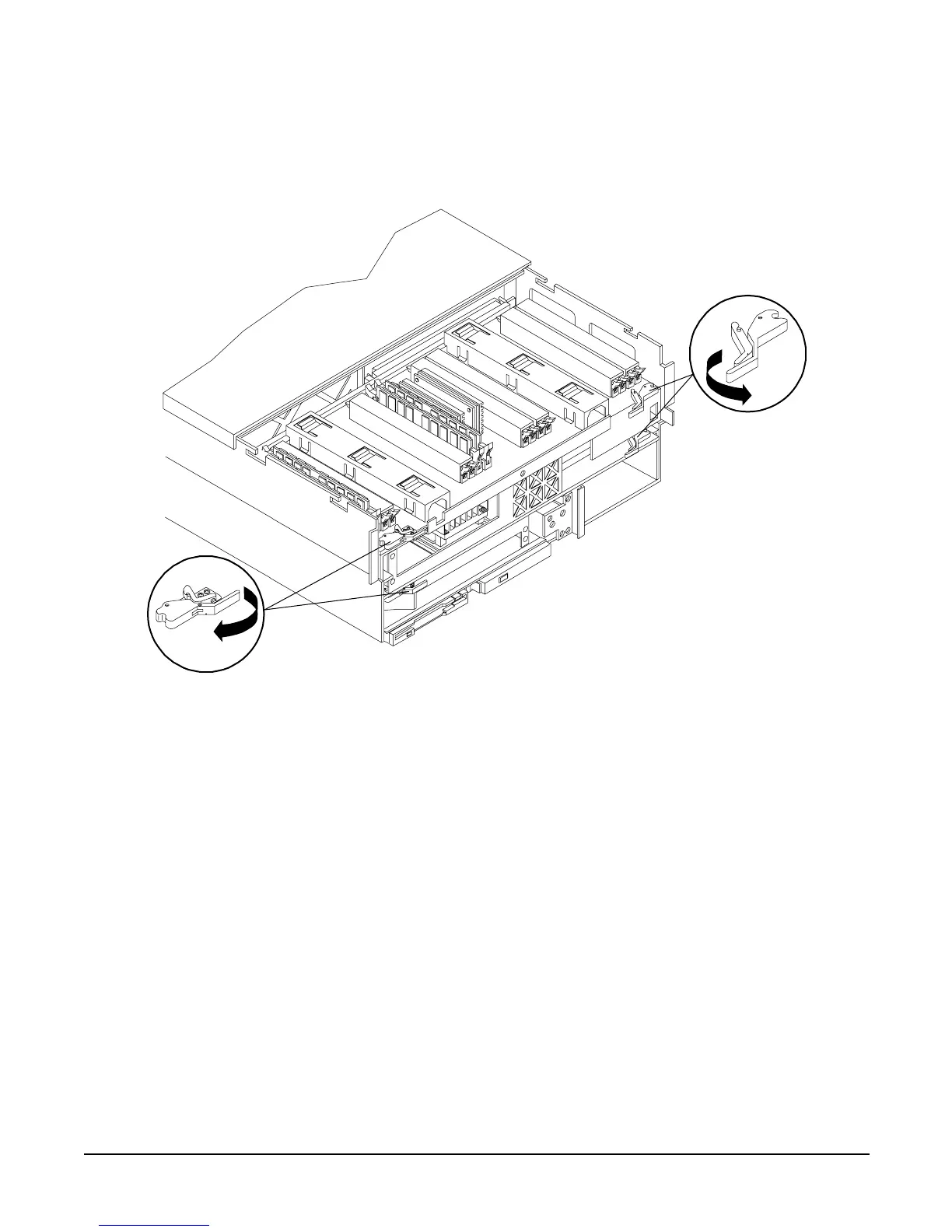

Figure 7-7 Memory Extender Board Latches
