Chapter 7
Removing and Replacing Components
System Memory DIMMs
158

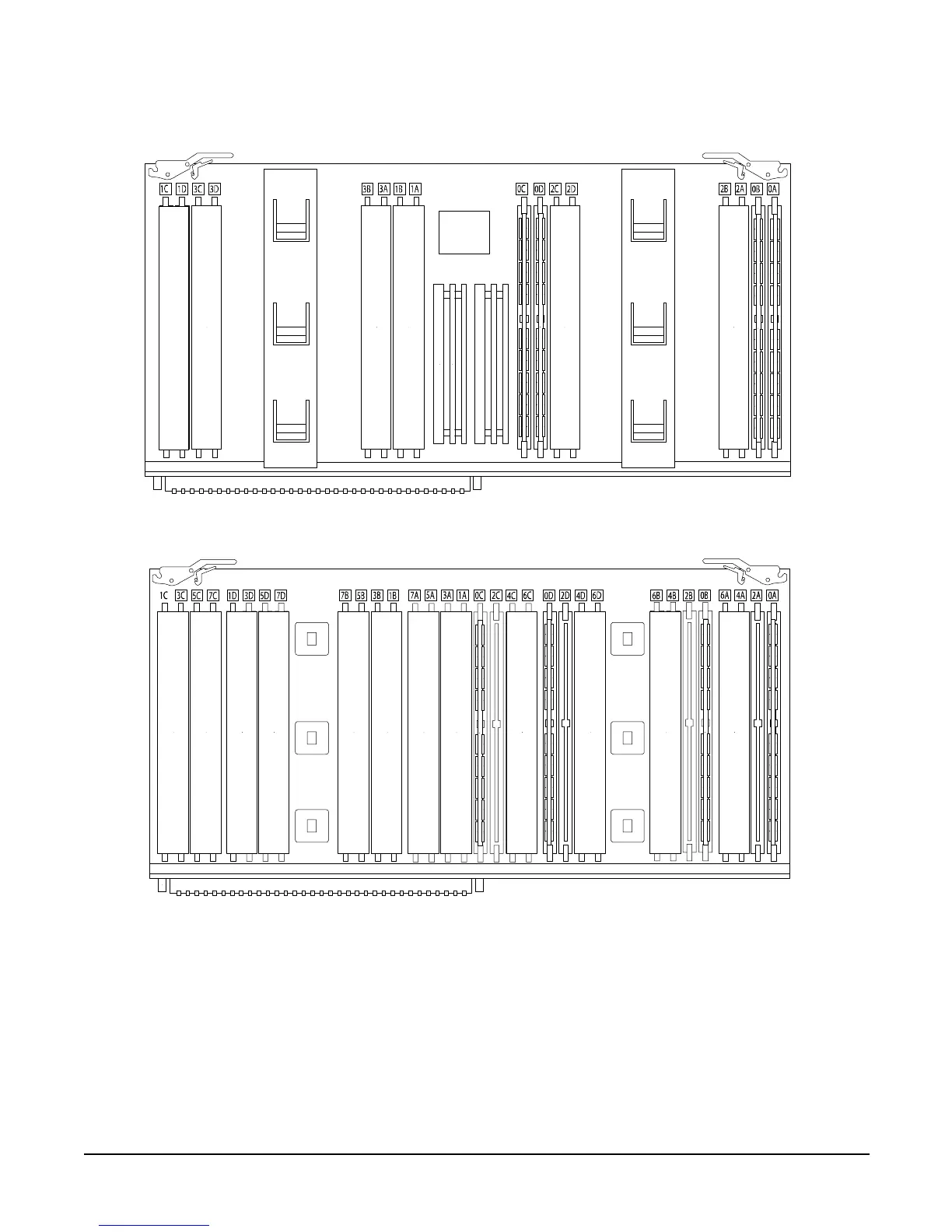

Figure 7-9 16 DIMM Extender Board Slot IDs
Figure 7-10 32 DIMM Extender Board Slot IDs
Installing DIMMs
To install DIMMs, perform the following steps:
Step 1. Align the DIMM with the socket located on the memory extender board.
Step 2. Gently and evenly push on each side of the DIMM until it seats in the socket. Ensure that the extraction levers are
in the closed position.
Step 3. Replace the memory extender board.
Step 4. Replace the top cover.
