Chapter 7
Removing and Replacing Components
QuickFind Diagnostic Board
219
Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD safety
precautions could result in damage to the server.

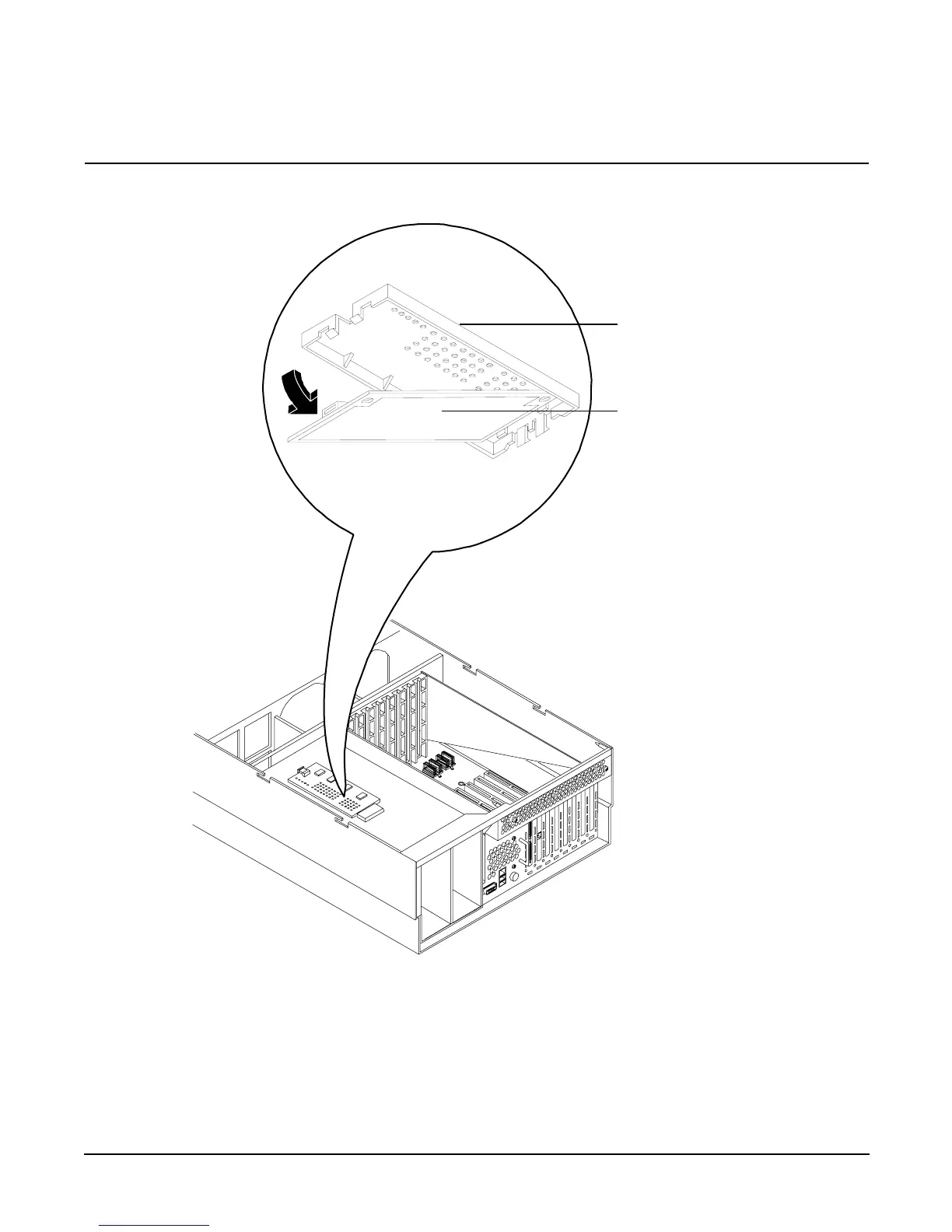

Figure 7-37 QuickFind Diagnostic Board Removal and Replacement
Removing the QuickFind Diagnostic Board
To remove the QuickFind diagnostic board, perform the following steps:
Step 1. If rack mounted, slide the HP Server out from the rack until it stops. See “Accessing a Rack Mounted Server” on
page 141.
Step 2. Remove the top cover. See “Front and Top Covers” on page 145.
Cover
QuickFind
diagnostic board
