Chapter 7
Removing and Replacing Components
Memory Extender Board
153

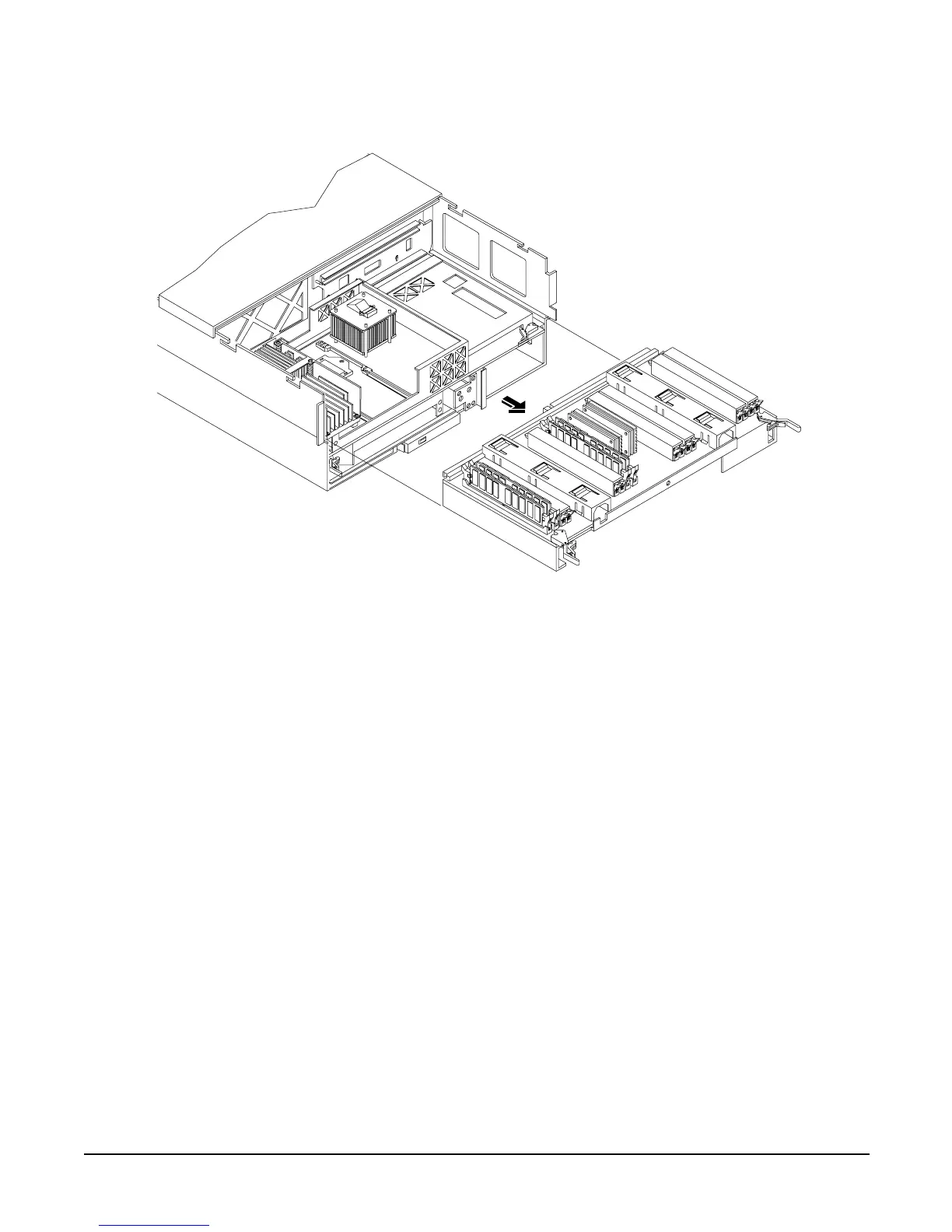

Figure 7-8 Memory Extender Board
Replacing a Memory Extender Board
To replace the memory extender board, perform the following steps:
Step 1. Ensure the extraction levers are positioned in the outward, unlocked position.
Step 2. Align the memory extender board with the front and rear chassis guide slots.
Step 3. Slide the memory extender board in until it begins to seat in the socket located on the midplane board.
Step 4. Push the extraction levers inward to the locked position in order to plug in the memory extender board into the
midplane riser board.
Step 5. Replace the front cover.
Step 6. Replace the front bezel.
Step 7. If rack mounted, slide the HP Server into the rack until it stops.
