Chapter 7
Removing and Replacing Components
Hot-Swap Chassis Fan Unit
168
Removing a Hot-Swap Chassis Fan Unit

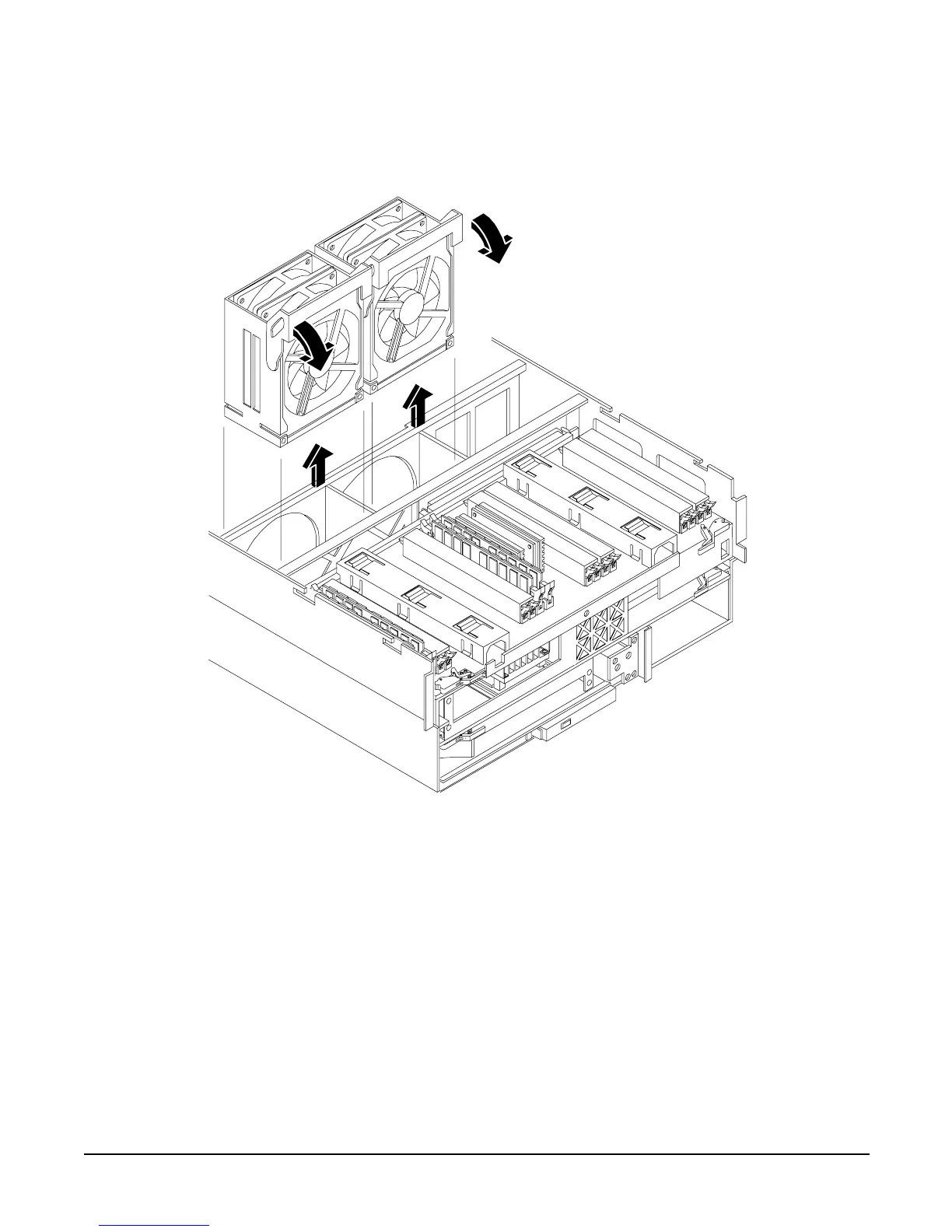

Figure 7-16 Hot-Swap I/O Chassis Fans Removal and Replacement
To remove a hot-swap chassis fan unit, perform the following steps:
Step 1. If rack mounted, slide the HP Server out from the rack until it stops. See “Accessing a Rack Mounted Server” on
page 141.
Step 2. Remove the top cover. See “Front and Top Covers” on page 145.
Step 3. Grasp the fan unit locking handle, tilt it up, and pull out the fan from the chassis.
