HP Integrity rx4640 - Serial Ports; Management Processor LAN Port

Chapter 3
External Connectors
Connector Pinouts
31
Serial Ports

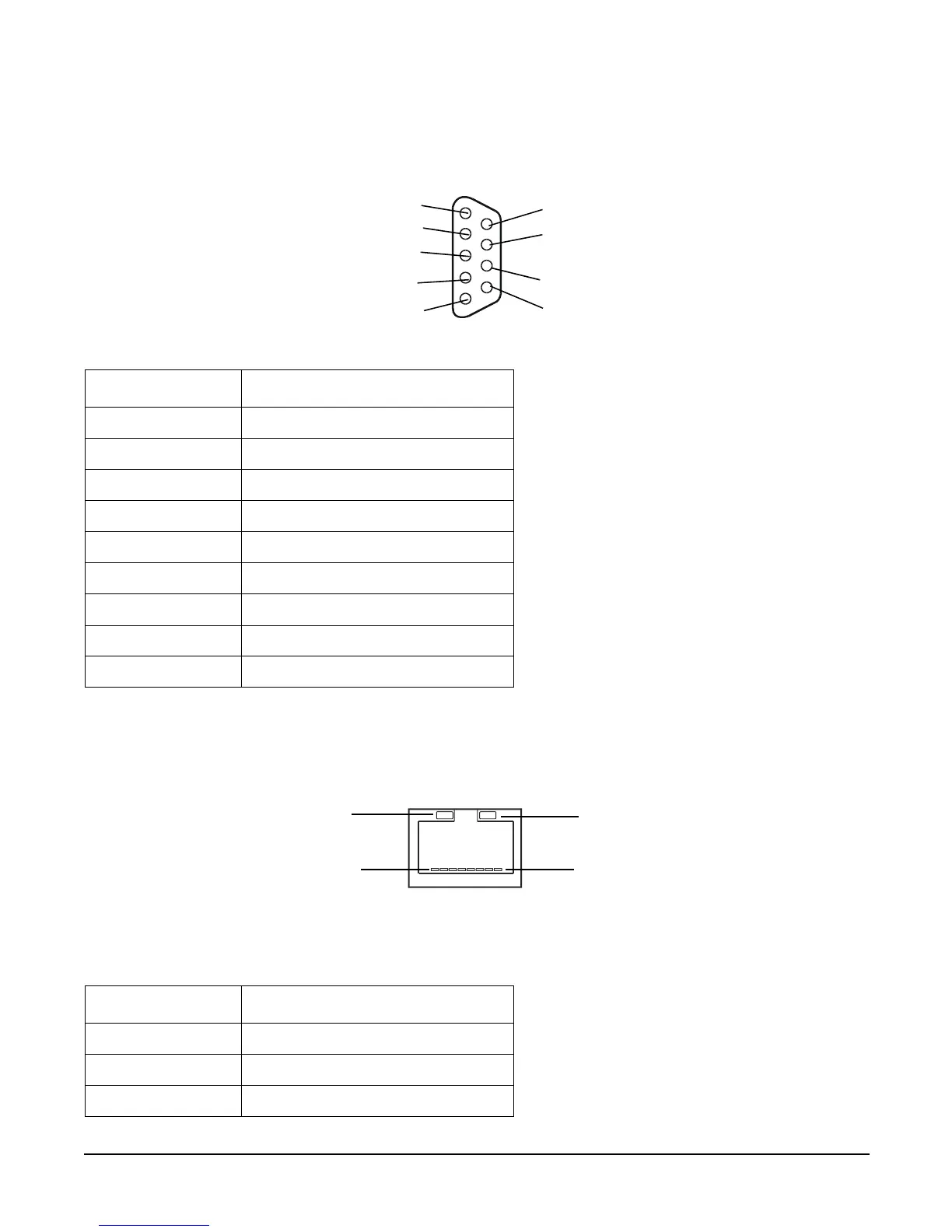

Figure 3-4 Serial Port Connector
Management Processor LAN Port
Figure 3-5 Management Processor Port
Table 3-3 Serial Port Pinouts
Pin Number Signal Description
1 Data carrier detect
2 Receive data
3 Transmit data
4 Data Term ready
5 Ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
Table 3-4 Management Processor LAN Port Pinouts
Pin Number Signal Description
1TXP
2TXN
3RXP
5
4
3
2
1
9
8
7
6
Green
1
Yellow
8
