Chapter 4
Installing Additional Components and Configuring
Installing Processors and Memory
52
Step 5. If rack mounted, slide the HP Server into the rack until it stops.

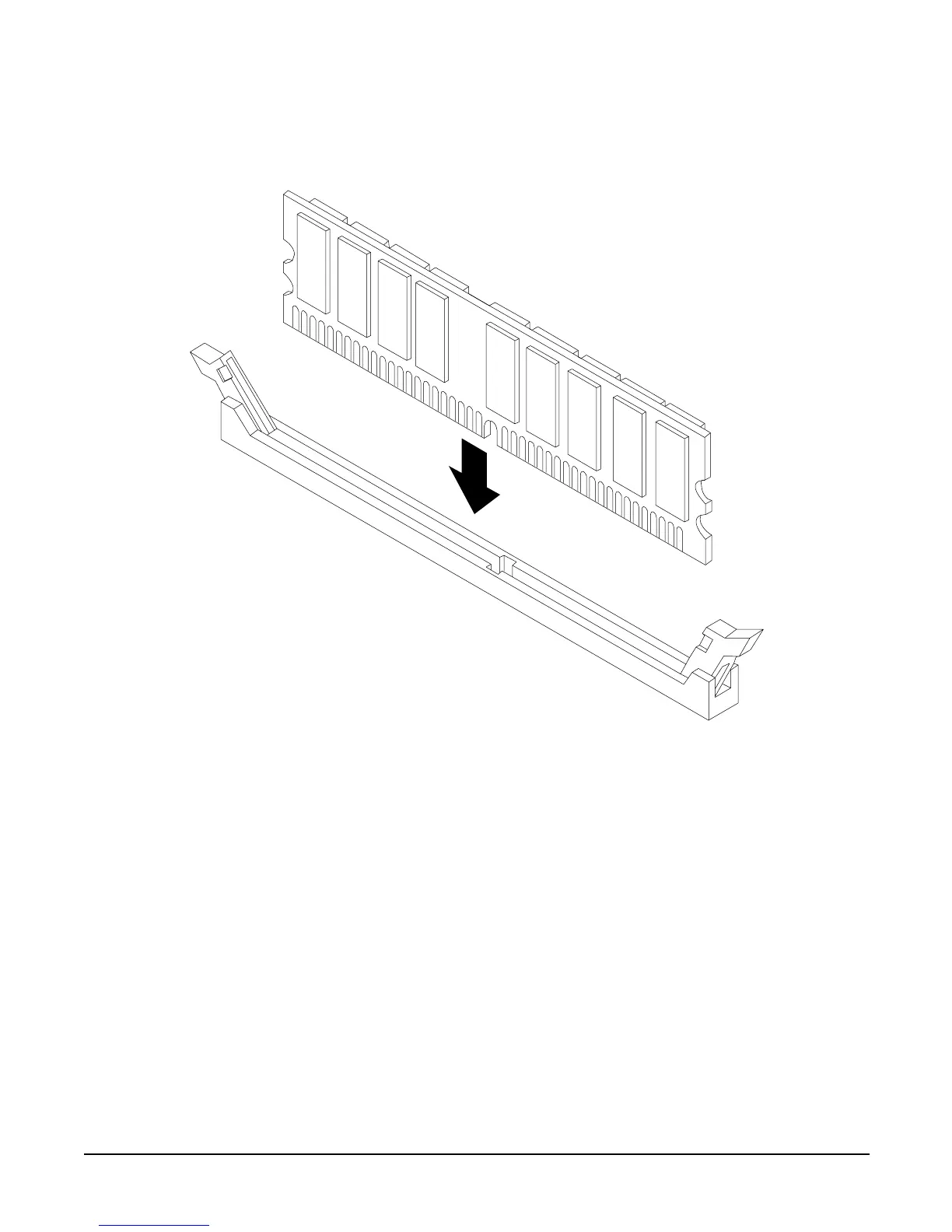

Figure 4-14 Inserting DIMM into Extender Board Slot
Replacing a Memory Extender Board
To replace the memory extender board, perform the following steps:
Step 1. Ensure the extraction levers are positioned in the outward, unlocked position.
Step 2. Align the memory extender board with the left and right chassis guide slots.
Step 3. Slide the memory extender board in until it begins to seat in the socket located on the midplane riser board.
Step 4. Push the extraction levers inward to the locked position in order to fully plug in the memory extender board into
the midplane riser board.
Step 5. Replace the front cover onto the chassis.
Step 6. Replace the front bezel onto the chassis.
Step 7. If rack mounted, slide the HP Server into the rack until it stops.
