Chapter 7
Removing and Replacing Components
Hot-Swap Power Supplies
205
Replacing a Hot-Swap Power Supply
Step 1. Supporting the PSU with both hands, slide it into the empty slot until it plugs into the socket on the internal power
distribution board. Tighten the thumbscrew hand-tight.
Step 2. Install the power cord into the PSU socket.
Step 3. Apply power to the new PSU and the LED should immediately turn on.
Step 4. If rack mounted, slide the HP Server back into the rack until it stops.

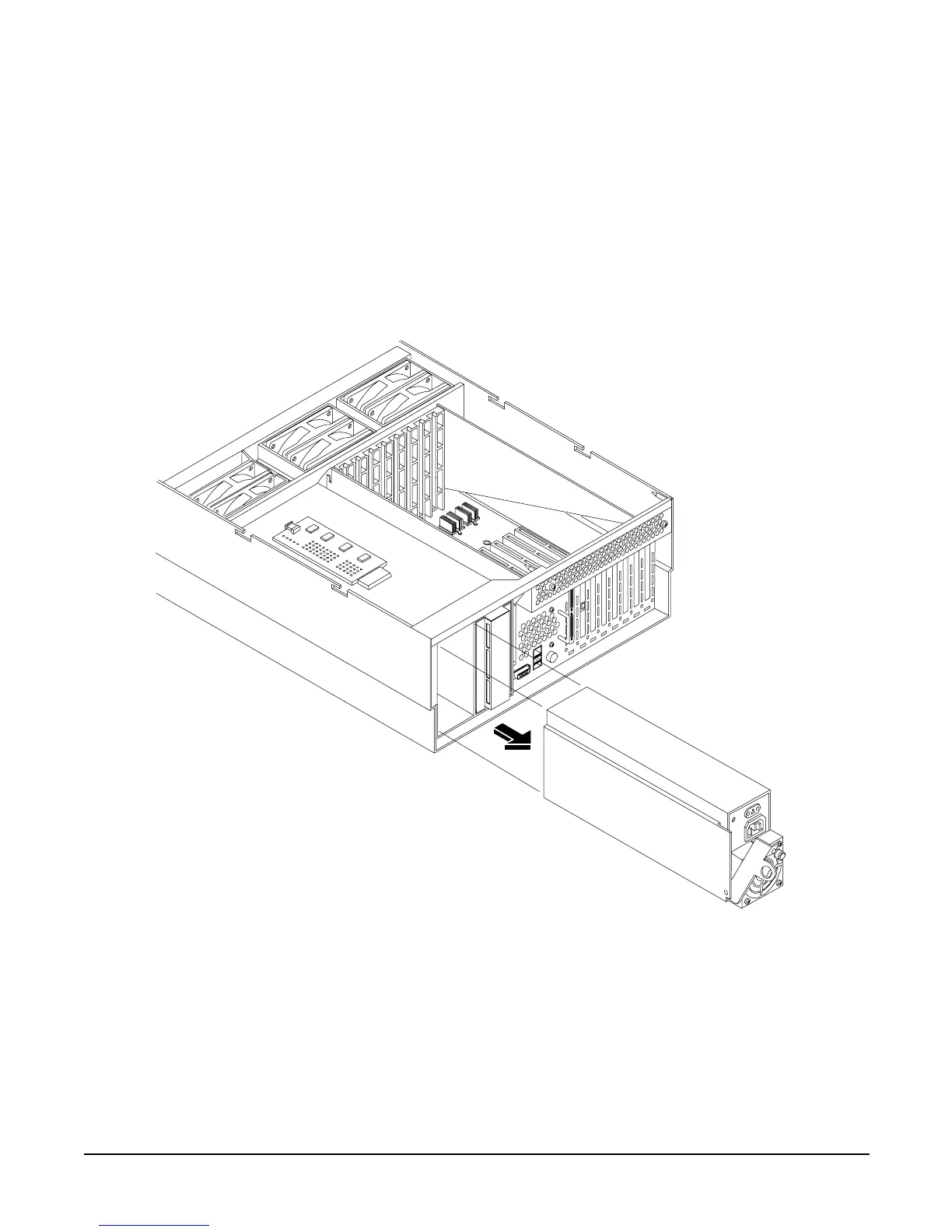

Figure 7-32 Hot-Swap Power Supply Removal and Replacement
