Chapter 7
Removing and Replacing Components
Processors
166

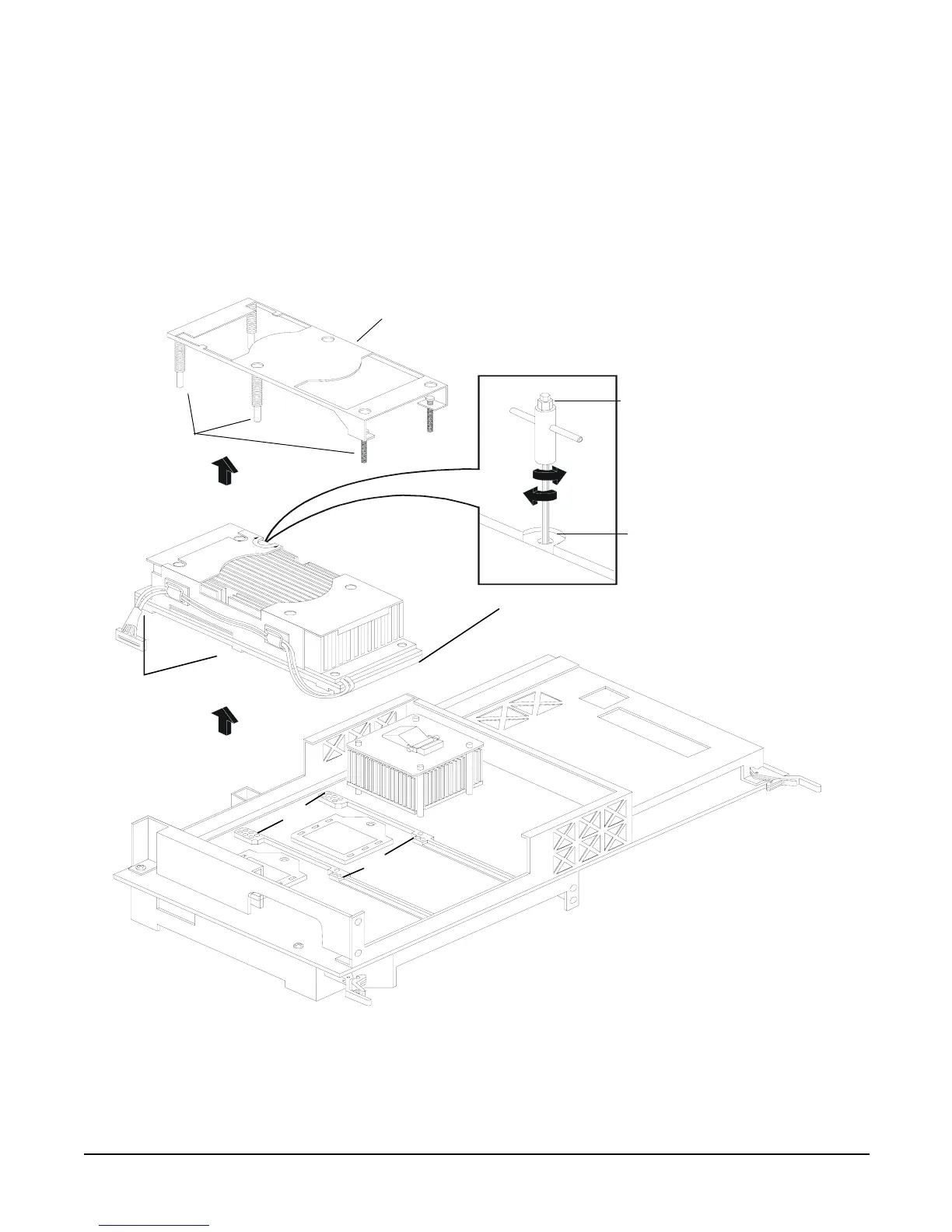

Figure 7-15 Installing Processor on Extender Board
Align pins on
heatsink with
slots in frame
Power cable protected by
plastic sleeve
slots*
slots*
*slots shown are at
CPU socket #1 for
clarity.
Processor shown is
being mounted on
socket #0 per CPU load
order.
4
1
3
2
5
6
Torx-T15
Use supplied
wrench for
tightening
shoulder screws
and thumbscrews
2.5MM Allen
Tightening sequence for 6-shoulder
screws is:
AB371A or AB372A: 1,2,3,4,5,6
AB373A: 3.4,1,2,5,6
DO NOT OVERTIGHTEN!
Shoulder
screws
Sequencer
