Chapter 4
Installing Additional Components and Configuring
Converting SCSI From Simplex to Duplex
69
• Plug the SCSI cable B connector into the SCSI B channel connector located at the rear of the board.

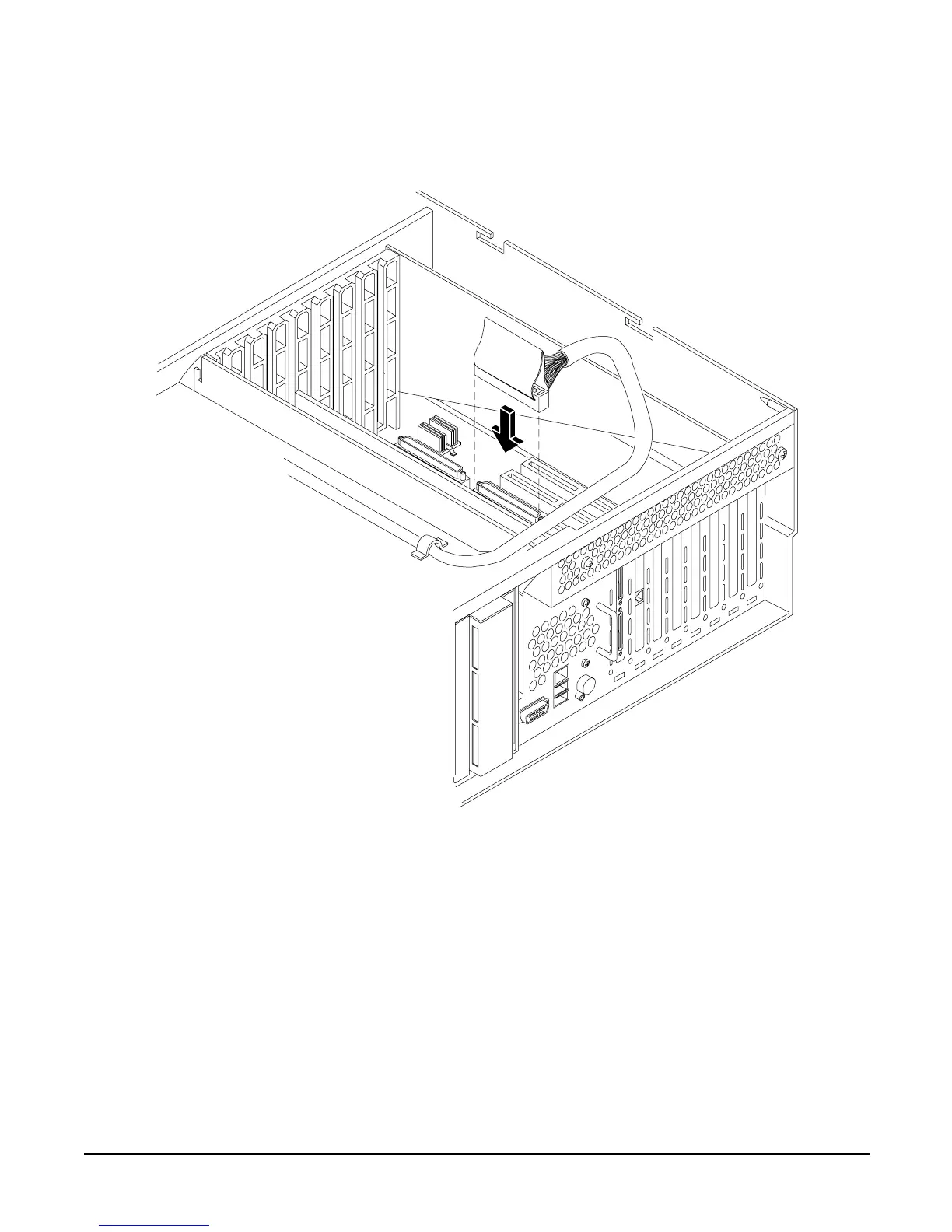

Figure 4-21Installing SCSI Cable B to the SCSI Adapter Board
